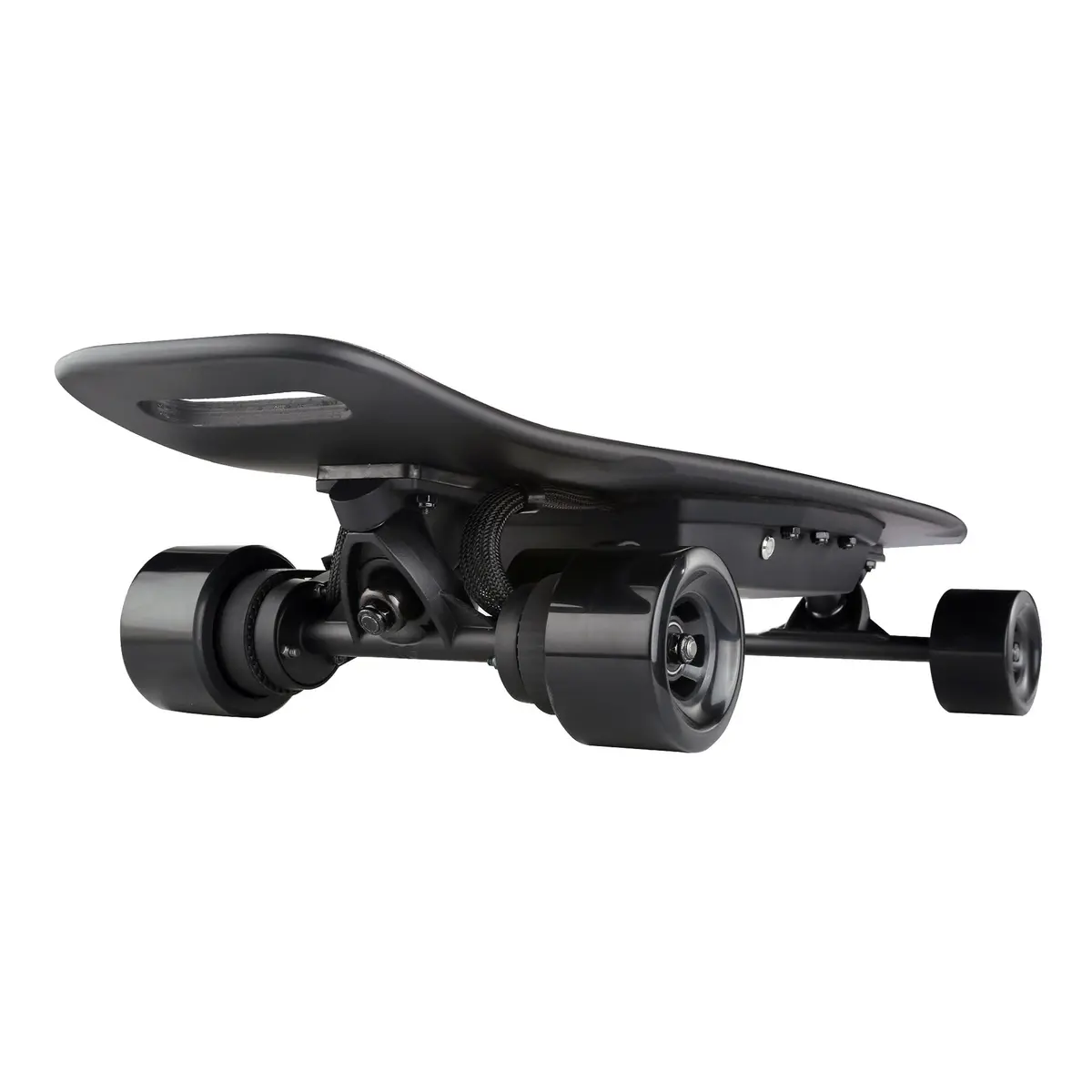

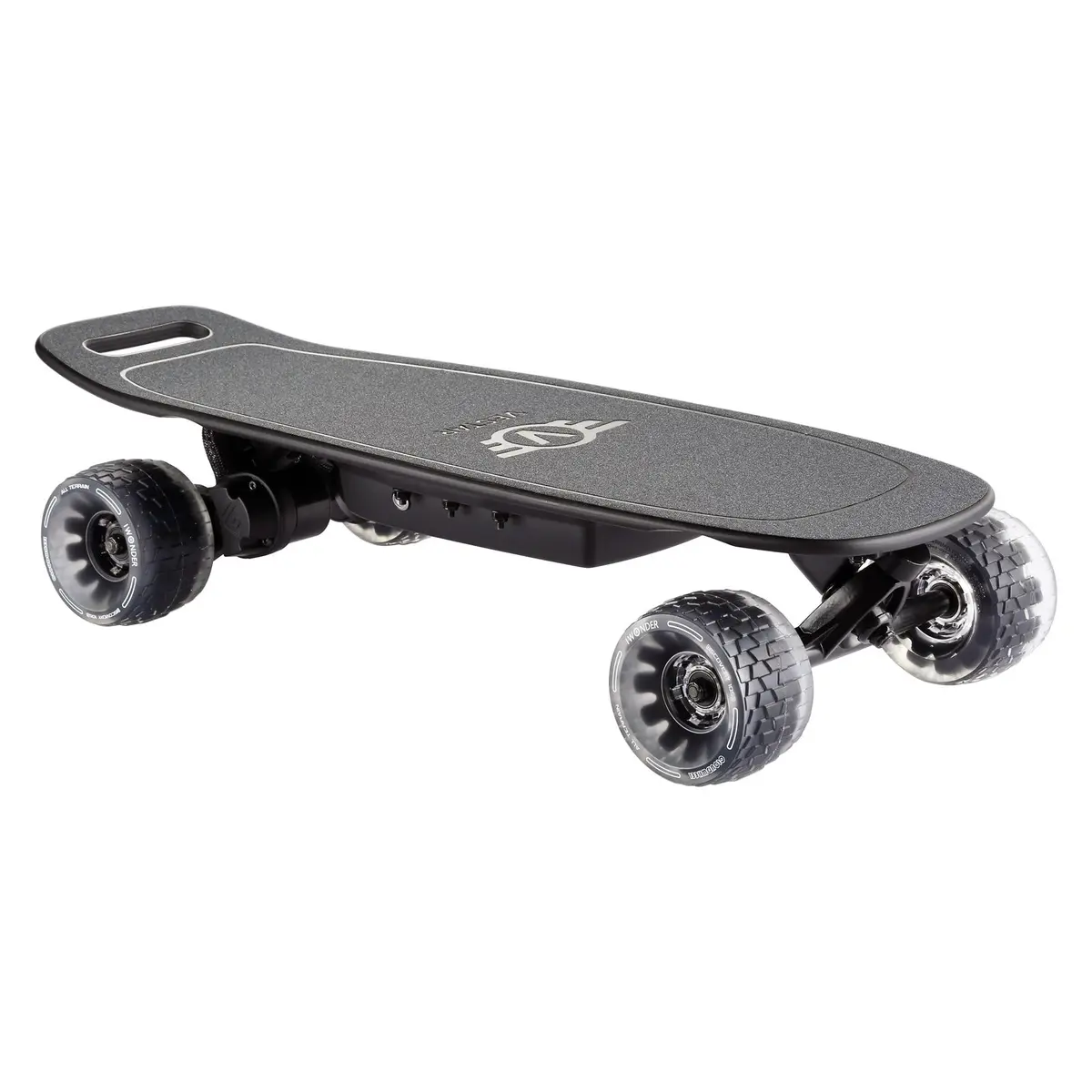

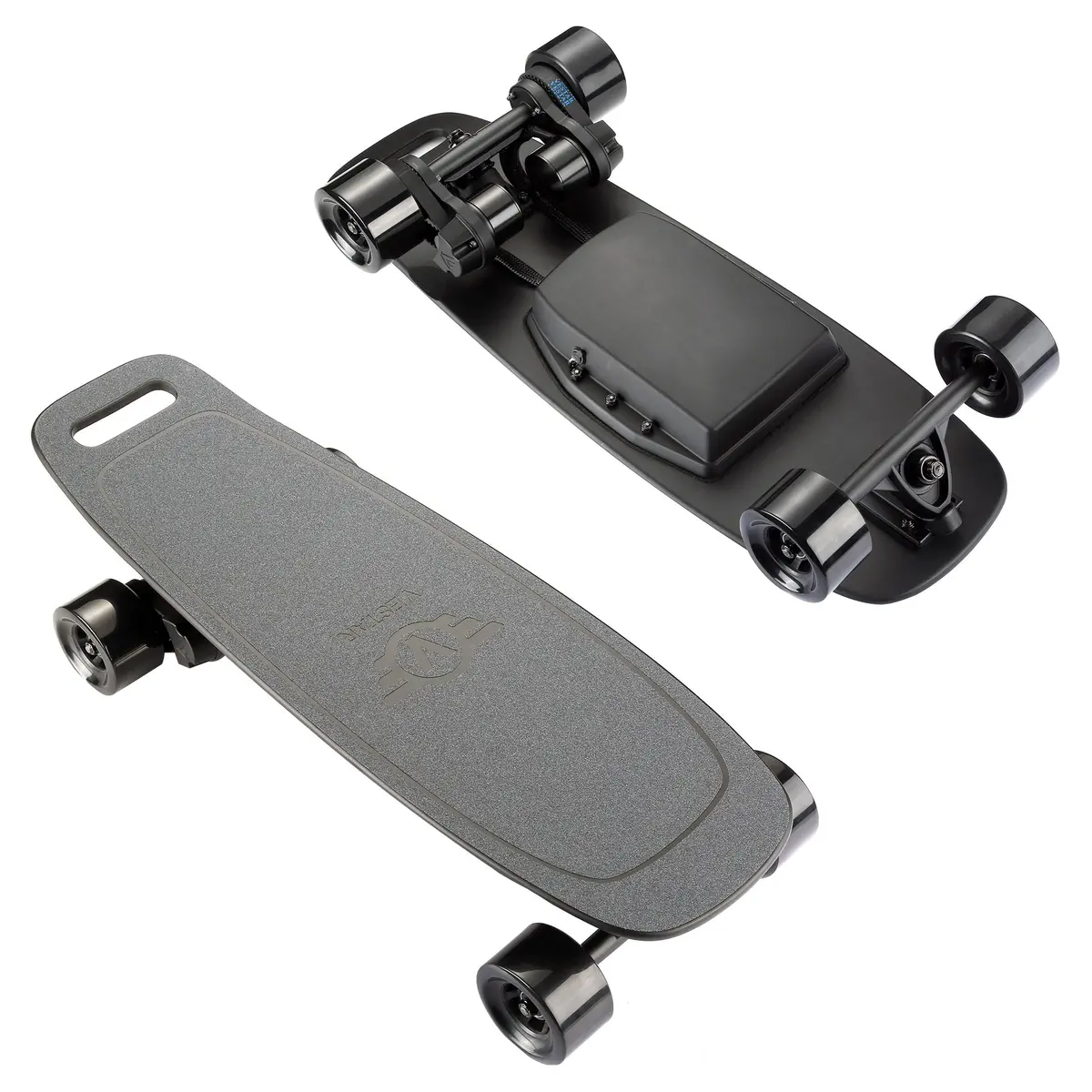

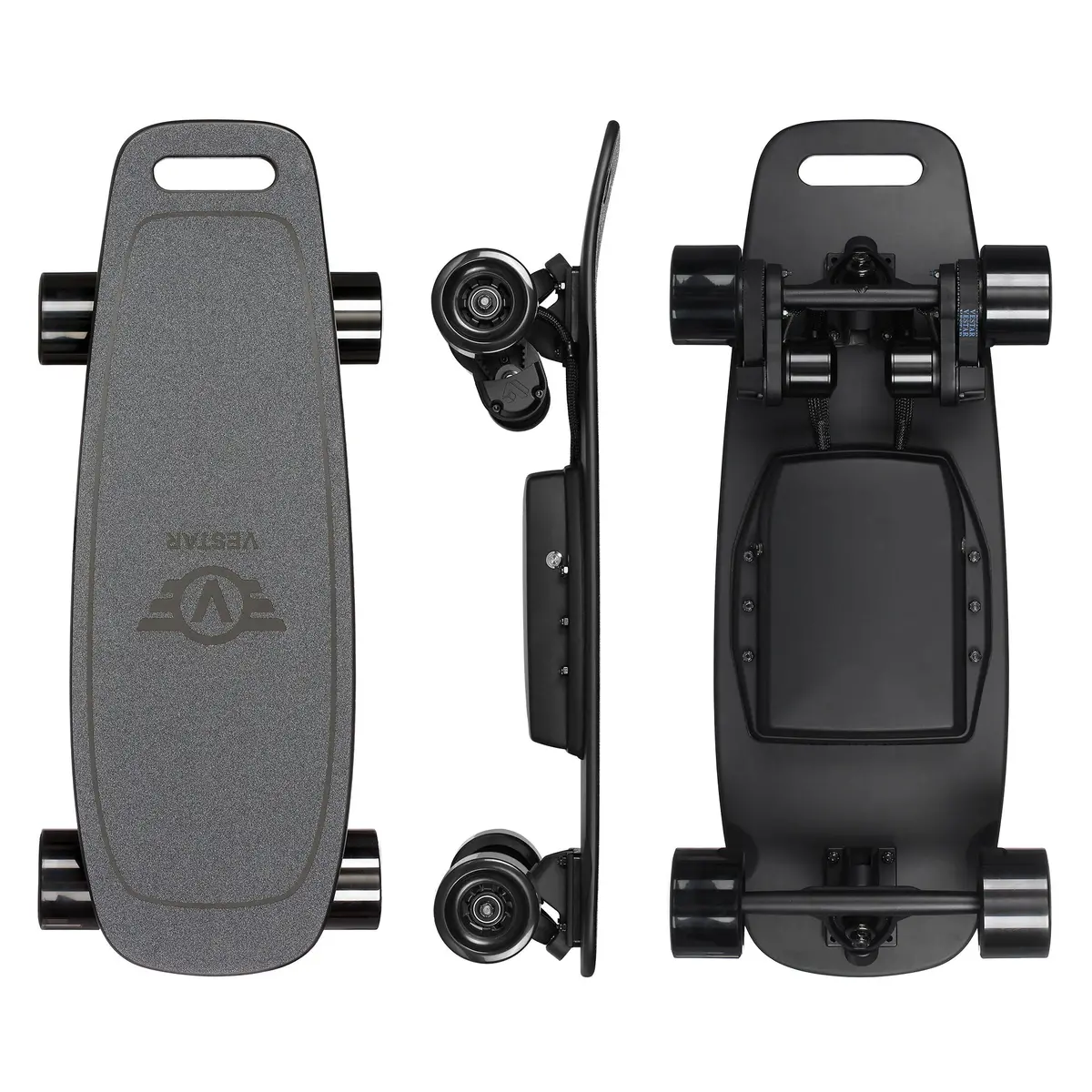

Vestar Mini 2 Turbo Enhanced Power Electric Skateboard

Description

Specification

---

Modle		Enhanced	Pro	Pro+
SPEC	Max speed	27Miles/H	27Miles/H	27Miles/H
	Max range	15 Miles	18 Miles	21 Miles
	Max load	110 kg / 240 lbs	110 kg / 240 lbs	110 kg / 240 lbs
	Hills	UP TO 30%	UP TO 30%	UP TO 30%
MOTOR	Type	Belt Drive	Belt Drive	Belt Drive
	Power	5065 1200W*2	5065 1200W*2	5065 1200W*2
BATTERY	Wh	252Wh	280.8Wh	324Wh
WHEELS	Material	Highly Elastic PU	Highly Elastic PU	Highly Elastic PU
	Size	90 mm	90 mm	90 mm
	Hardness	80A	80A	80A
DECK	Material	7-Ply Maple	7-Ply Maple	7-Ply Maple
	Length	27 inches / 70 cm	27 inches / 70 cm	27 Inches / 70 cm
CASE	CASE Material	Aluminum	Aluminum	Aluminum
TRUCKS	Trucks	8 inch Aluminum  T6	8 inch Aluminum  T6	8 inch Aluminum  T6
	Busing	97AA	97AA	97AA
	Bearing	One-Piece Precision Bearing	One-Piece Precision Bearing	One-Piece Precision Bearing
OTHERS	USB port
IN BOX	Remote	R2 Remote	R2 Remote	R2 Remote
	Manual	1	1	1
	Quick Charger	2A	2A	2A
	AC Power Cable	1t	1t	1t
	Mini USB Cable	1	1	1
	Skate Tool	1	1	1
	Spline End Wrenches	1	1	1
COMPLATE	Net weight	14lb	14lb	14lb
	Gross weight
	Package Size

Inspiration

---

The Vestar mini series is called a light fighter by fans for its excellent performance and super portability, and is deeply loved by skateboarders.

Mini 2 upgrade Log:

1. The newly designed non-slip sandpaper makes the sandpaper more beautiful, durable and easier to clean;

2. 2.Upgrade the new high-rate Samsung 30Q battery, 30A continuous discharge, so that the skateboard has a stronger power source;

3. The die-casting vehicle is upgraded to gravity casting + T6 heat treatment process vehicle,It can bear the weight of more than 150KG. The newly designed inclination angle makes the skateboard more stable when riding at high speed.

4. The truck has been redesigned to adapt to various mainstream skateboard wheels with a diameter below 110mm on the market.
   Including cloud wheel, ABEC11 wheel, Mbs AT wheel and various rubber wheels;

5. The board surface adjustment design adds a wheel seat, which can be adapted to install larger diameter skateboard wheels.

6. Upgrade the power kit, the motor is upgraded to 5065 dual drive, and the controller with higher power is updated;
7. The remote control is upgraded to R4 Lcd Bluetooth remote control;

latest update: 2023/7/1

The new Vestar Mini still maintains a very competitive price on the premise of improving the performance of the skateboard. If you like a skateboard that is easy to take away, does not take up space, and maintains the explosive power of a portable skateboard, then the vestar mini is your best choice!

Mini body, Max power

---

The powerful power and flexibility of the previous generation mini left a deep impression on everyone.
The upgraded new generation mini will surely bring you even greater surprises.

Aviation Travel edition

---

We provide a 90Wh travel battery version, which fully complies with aviation safety regulations.
When you need to travel long distances, bringing it will make your journey seamless.

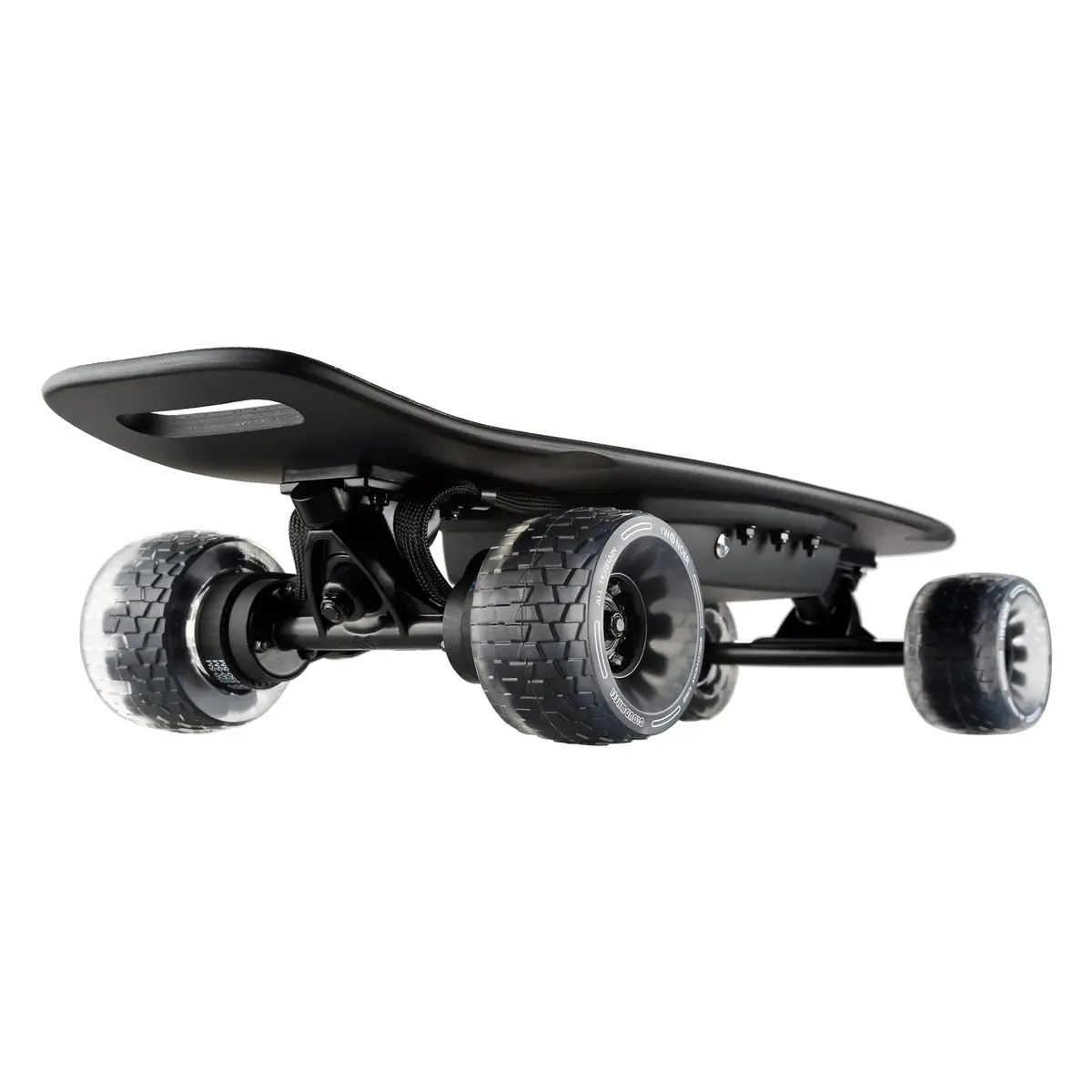

Flexible wheel matching

---

Vesta Mini2 series uses adjustable motor mount, Our board can be easily fit to different diameters and different types wheels;
Wheel diameter adaptation: 83mm-150mm;

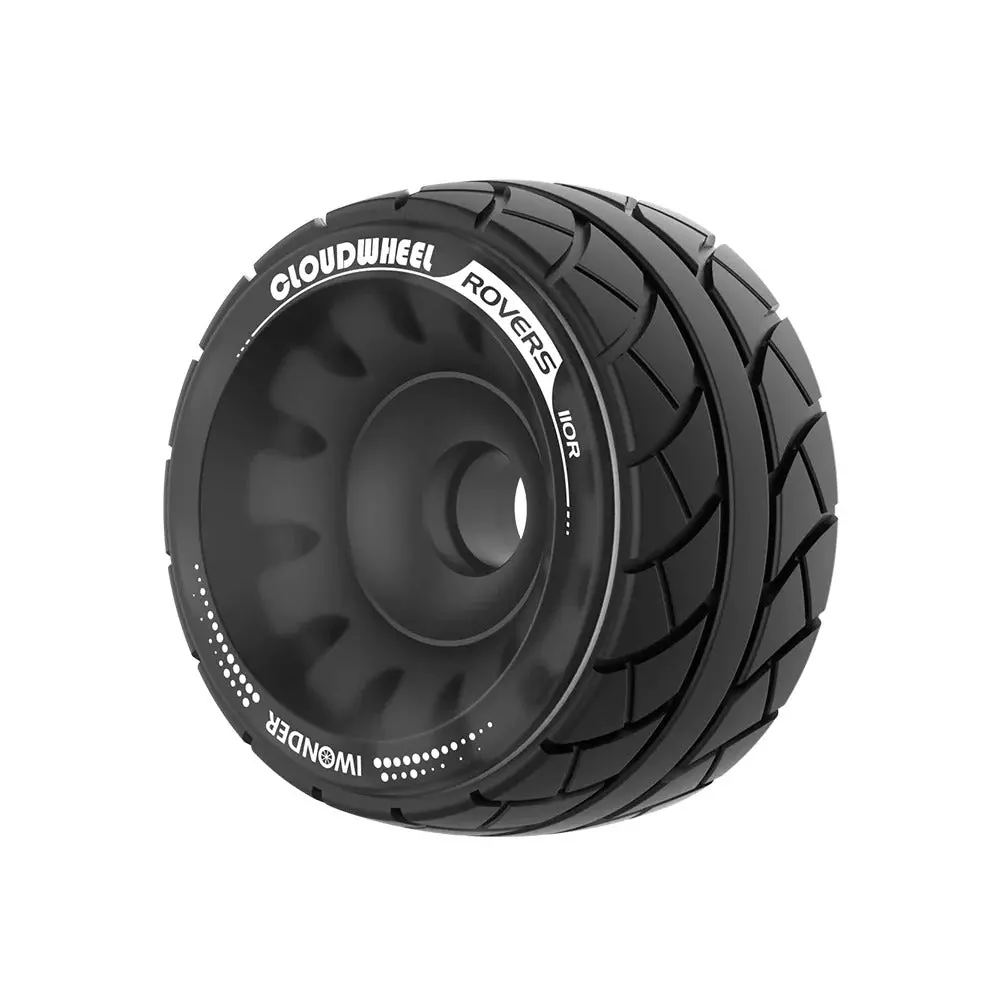

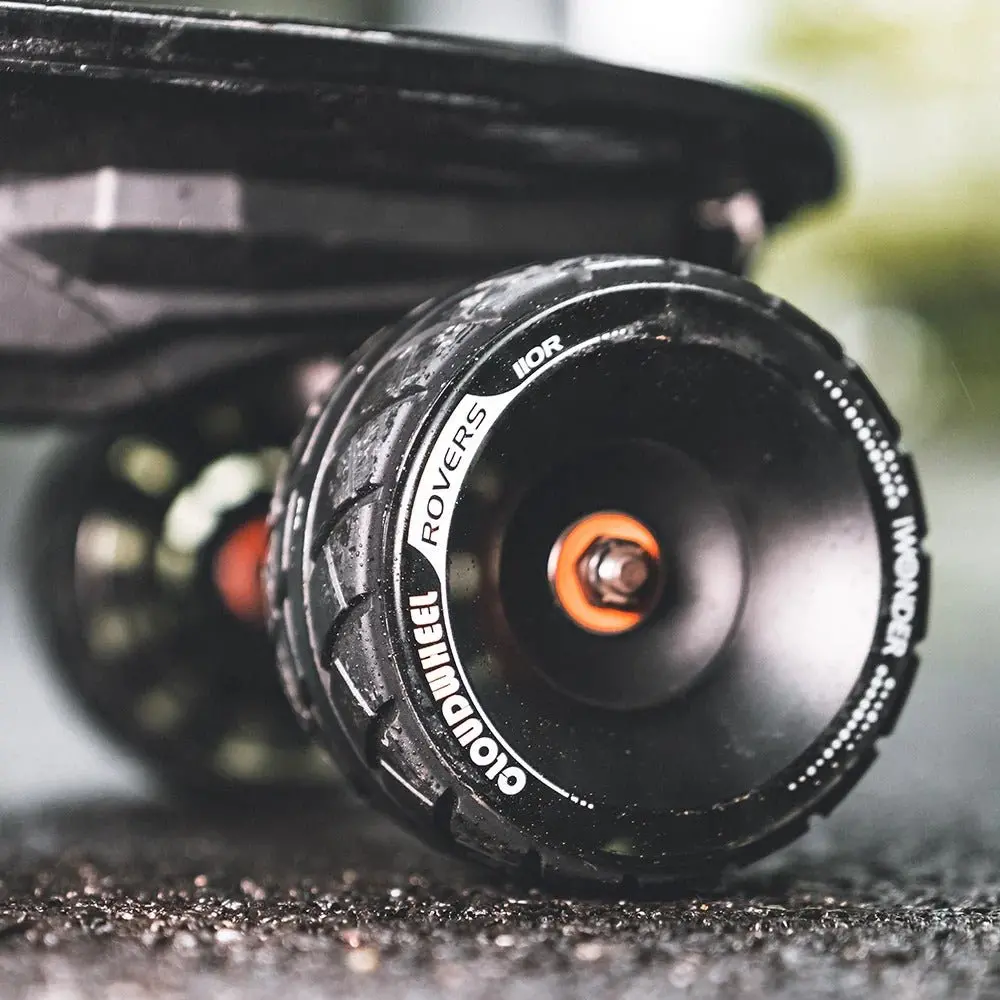

Wheel types fit: Normal PU wheels, Cloud wheels, ABEC11 wheels,MBS AT wheels,Rubber wheels, Air tire, Explosion-proof AT wheels Wait.

High-rate Power Battery

---

The vestar mini2 board uses a powerful, high-quality, high-discharge rate power battery.

Model	Enhanced	Pro	Pro+
Battery	252 Wh	280.8 Wh	324 Wh
Battery cell	SANYO GA	DMEGC 26E	SAMSUNG 30Q
Cell test Report	Cell spec	Cell spec	Cell spec
Nominal dischage capacity	3500mAh	2600mAh	3000mAh
Nominal voltage	3.6V	3.6V	3.6V
Ac impedance 1kHz	≤14mΩ	≤14mΩ	≤13.2mΩ
Voltage range	4.2-2.5V	4.2-2.5V	4.2-2.5V
Weight	≤48g	≤48g	≤48g
Cell surface Cut-off Temperature	0to+50℃	0to+50℃	0to+50℃
Standard charge current	1.25A	1.475A	1.25A
Max continuous current	4.0A	4.0A	4.0A
Standard current	0.5A	0.5A	0.5A
Max continuous current	12.0A	15.0A	35.0A

Gravity Casting Truck

---

Vestar Mini2 board truck part all adopt Gravity Casting + T6 heat treatment process, which is better than die-cast truck.Gravity Casting vs. Die Casting for Aluminum Skateboard Truck Parts

Comparison	Gravity Casting	Die Casting
Cast Alloy	A356-T6 aluminum alloy	A380 aluminum alloy
Process	Liquid aluminum alloys flows into to mold under gravity	Liquid aluminum alloy is pressed into mold under high pressure.
Heat Treatment	Can do T6 heat treatment to improve the strength	Can not do heat treatment.
Strength	Stronger with higher Hardness	Weaker with lower hardness
Cost	Complex process and high cost	Good unit price but high tooling cost
Bearing Weight	Can bear 150kgs or more.	Can bear 95kgs at most.

Classic Belt Drive System

---

The Vestar Mini2 series retains a 5045*2 dual-drive belt motor,
and the sufficient power output of 600W*2 allows the skateboard to continue to accelerate to more than 30MPH，
You can experience the fun of sliding comfortably.
Excellent heat dissipation control allows the motor to work for a long time, ensuring that you have no worries about long-distance riding.

ESC Technology

---

Vestar Mini2 series uses an excellent improved Hobbywing ESC(The overall hardware upgrade enables it to work at much higher current)
which allows you to get larger torque and faster acceleration,
Hobbywings ESC is famous in acceleration and braking system. You can have a wonderful and smooth riding!

Waterproof

---

Each Mini2 has been treated with Basic waterproof treatment both inside and outside.
Normally it could resist the splash of daily life.
Note: However. We should avoid water intake at power button and charging port.

---

Vestar Board has improved based on customer feedback.
We’re always developing our product and are rapidly becoming one of the best brands in the E-board Industry!

Wath’s in Box?
