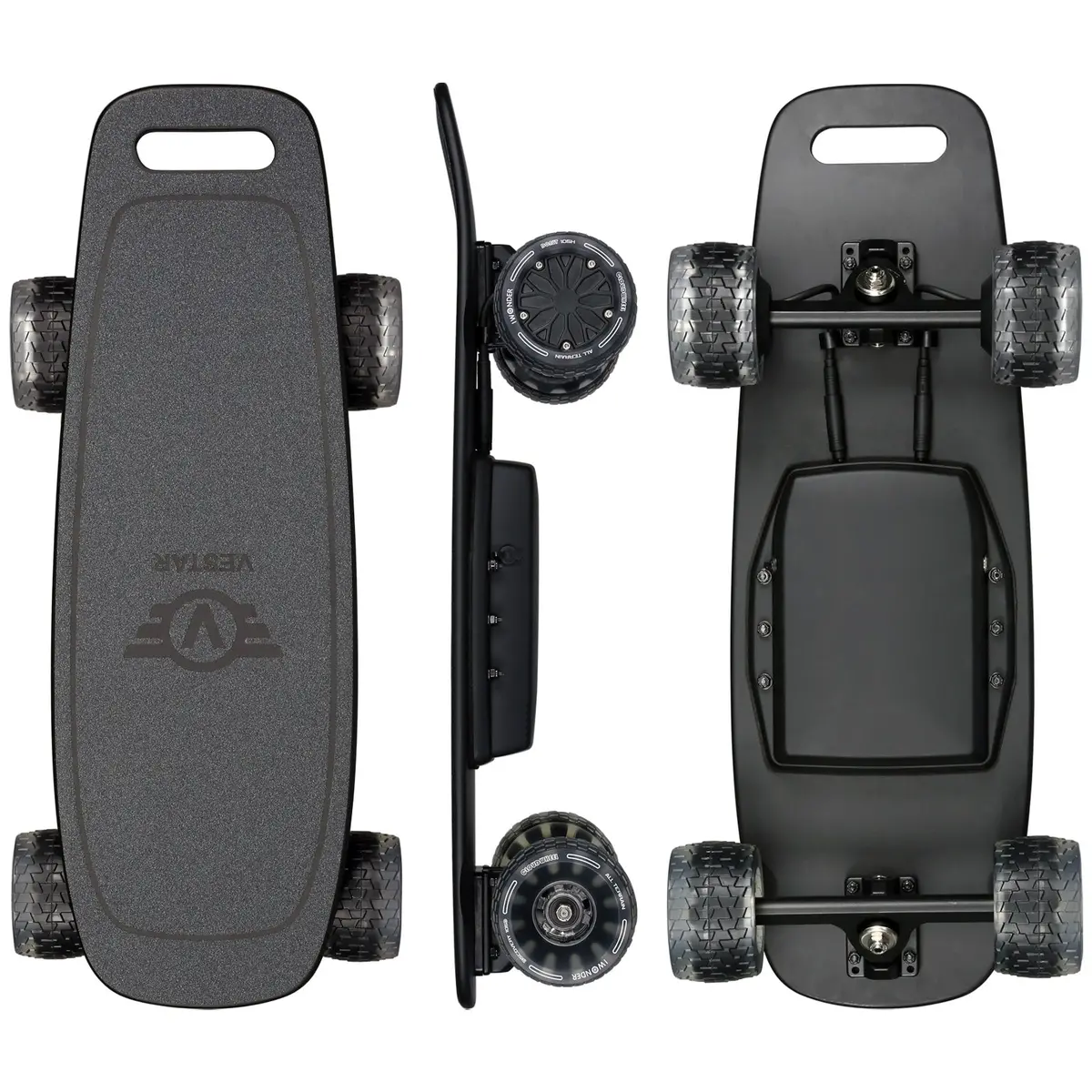

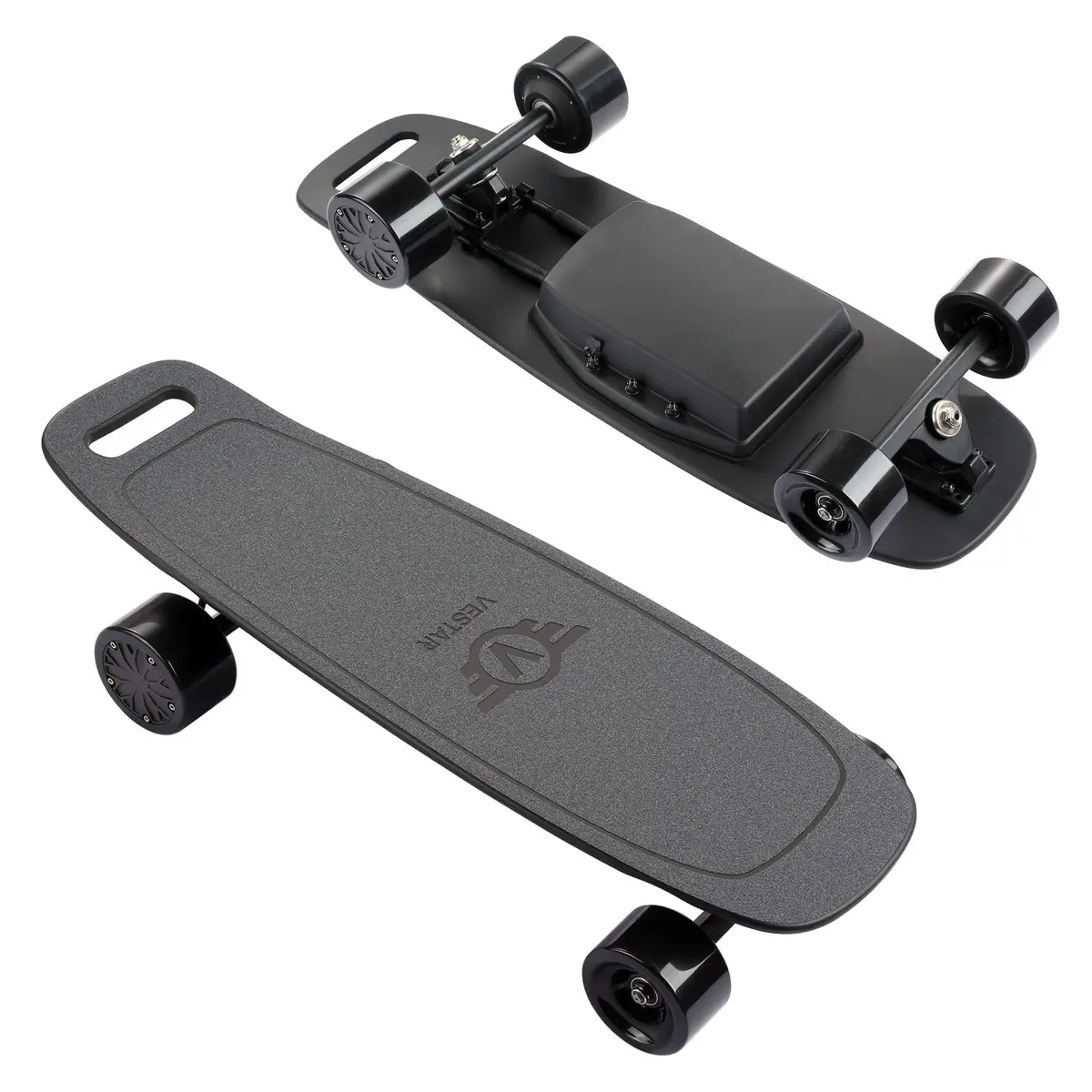

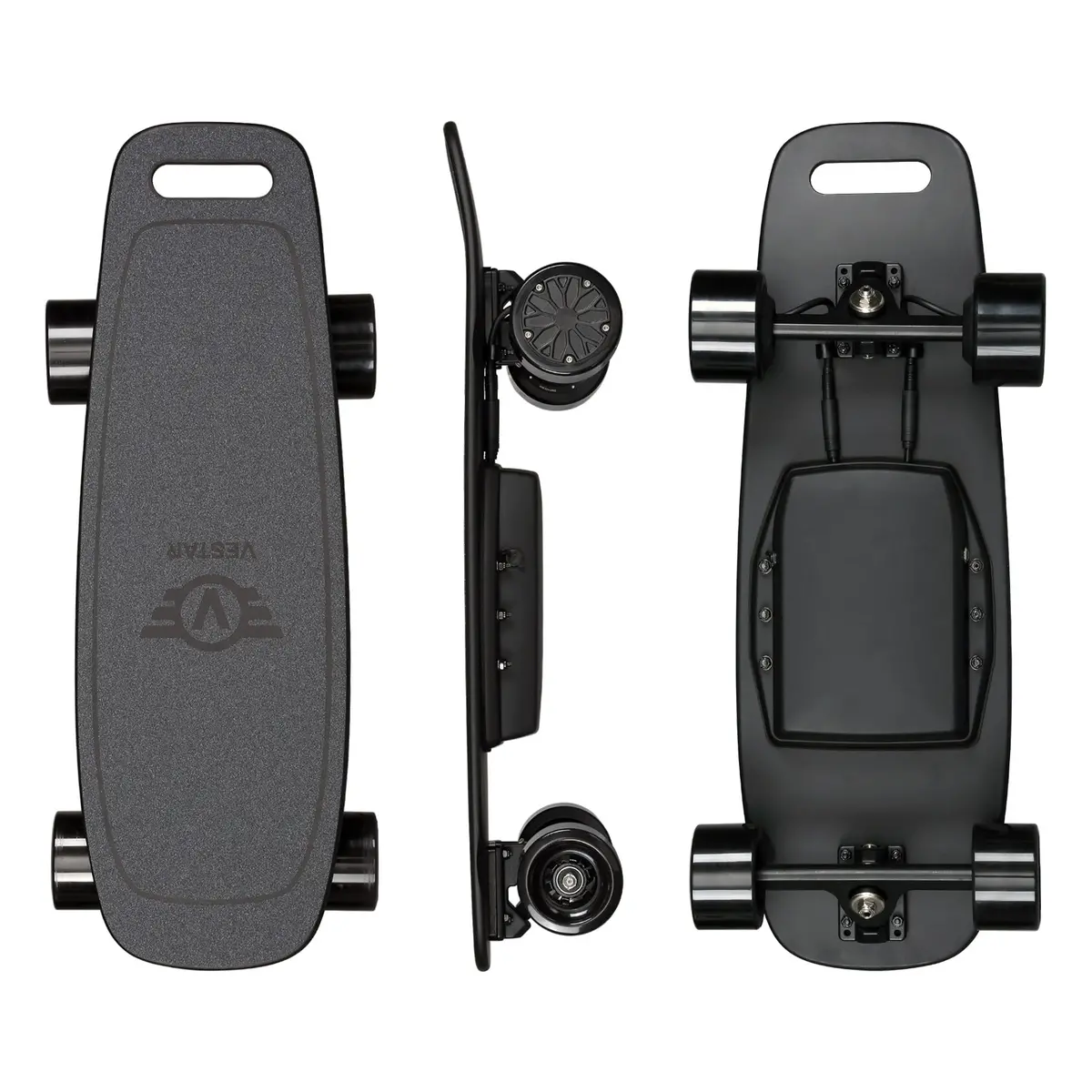

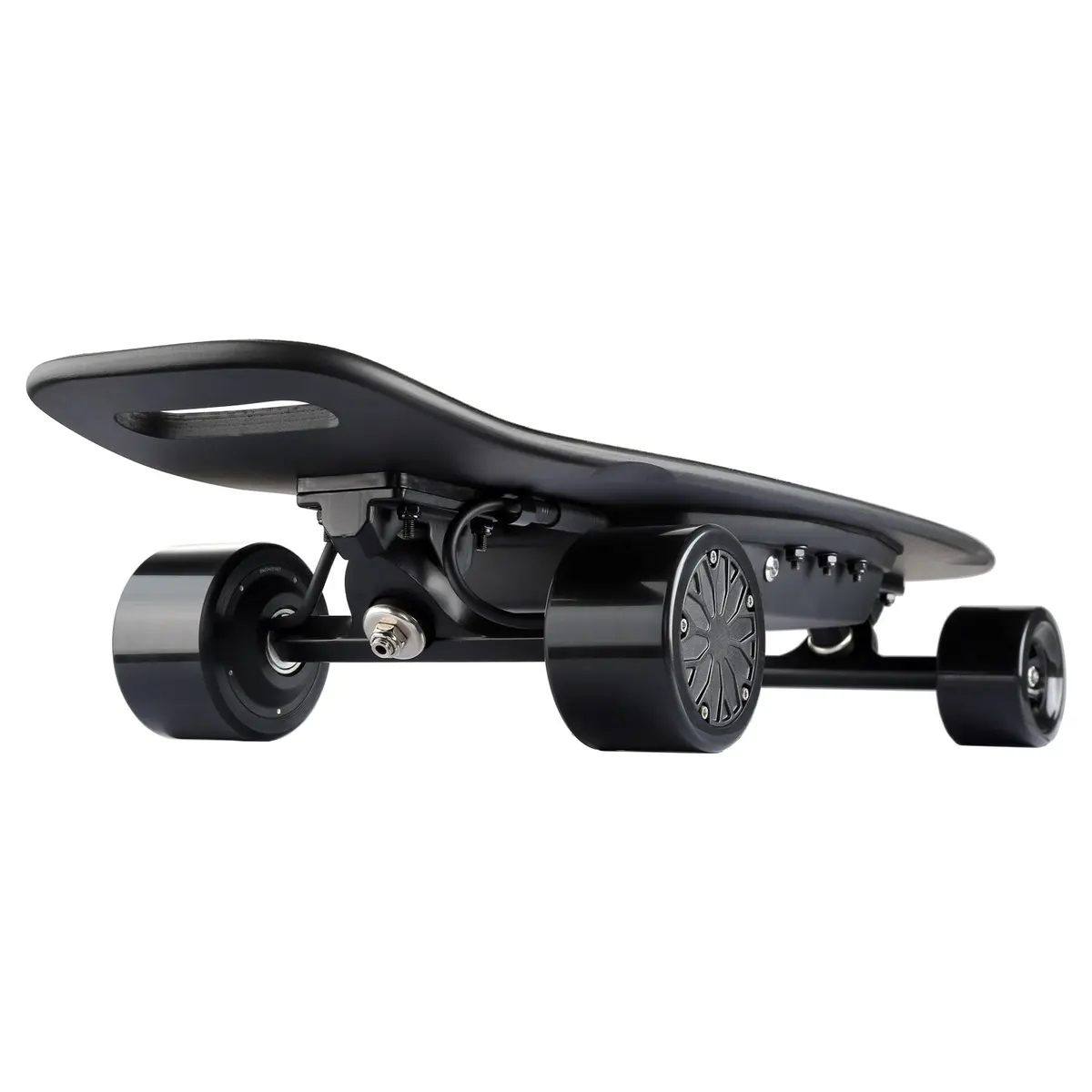

Vestar Mini 2 Cruise Compact Electric Skateboard

Description

Specification

---

Modle		Standard	Enhanced	Aviation
SPEC	Max speed	27Miles/H	27Miles/H	27Miles/H
	Max range	13 Miles	18 Miles	7 Miles
	Max load	110 kg / 240 lbs	110 kg / 240 lbs	110 kg / 240 lbs
	Hills	UP TO 30%	UP TO 30%	UP TO 30%
MOTOR	Type	Hub Drive	Hub Drive	Hub Drive
	Power	5230 600W*2	5230 600W*2	5230 600W*2
BATTERY	Wh	180Wh	252Wh	90Wh
WHEELS	Material	Highly Elastic PU	Highly Elastic PU	Highly Elastic PU
	Size	90 mm	90 mm	90 mm
	Hardness	80A	80A	80A
DECK	Material	7-Ply Maple	7-Ply Maple	7-Ply Maple
	Length	27 inches / 70 cm	27 inches / 70 cm	27 Inches / 70 cm
CASE	CASE Material	Aluminum	Aluminum	Aluminum
TRUCKS	Trucks	8 inch Aluminum  T6	8 inch Aluminum  T6	8 inch Aluminum  T6
	Busing	97AA	97AA	97AA
	Bearing	One-Piece Precision Bearing	One-Piece Precision Bearing	One-Piece Precision Bearing
OTHERS	USB port
IN BOX	Remote	R2 Remote	R2 Remote	R2 Remote
	Manual	1	1	1
	Quick Charger	2A	2A	2A
	AC Power Cable	1t	1t	1t
	Mini USB Cable	1	1	1
	Skate Tool	1	1	1
	Spline End Wrenches	1	1	1
COMPLATE	Net weight	13lb	13lb	13lb
	Gross weight
	Package Size

Inspiration

---

The Vestar mini series is called a light fighter by fans for its excellent performance and super portability, and is deeply loved by skateboarders.

Today we ushered in an important upgrade of MINI, now let’s take a look at its upgrade details:

1. The newly designed non-slip sandpaper makes the sandpaper more beautiful, durable and easier to clean;

2. Upgrade the new high-rate battery, 12C, 30A continuous discharge, so that the skateboard has a more powerful source of power;

3. The die-casting truck is upgraded to gravity casting + T6 heat treatment process trucks,
   which can bear the weight of more than 150KG. The newly designed tilt angle makes the skateboard more stable when riding at high speed.

4. The hub motor system has been upgraded, adding a suitable cloud wheel option, allowing the mini board to greatly improve the road passing performance;

5. The boards deck adjustment design adds wheel sockets, which can be adapted to install larger diameter skateboard wheels.

The new Vestar Mini still maintains a very competitive price on the premise of improving the performance of the skateboard. If you like a skateboard that is easy to take away, does not take up space, and maintains the explosive power of a portable skateboard, then the vestar mini is your best choice!

Mini body, Max power

---

The powerful power and flexibility of the previous generation mini left a deep impression on everyone.
The upgraded new generation mini will surely bring you even greater surprises.

Aviation Travel edition

---

We provide a 90Wh travel battery version, which fully complies with aviation safety regulations.
When you need to travel long distances, bringing it will make your journey seamless.

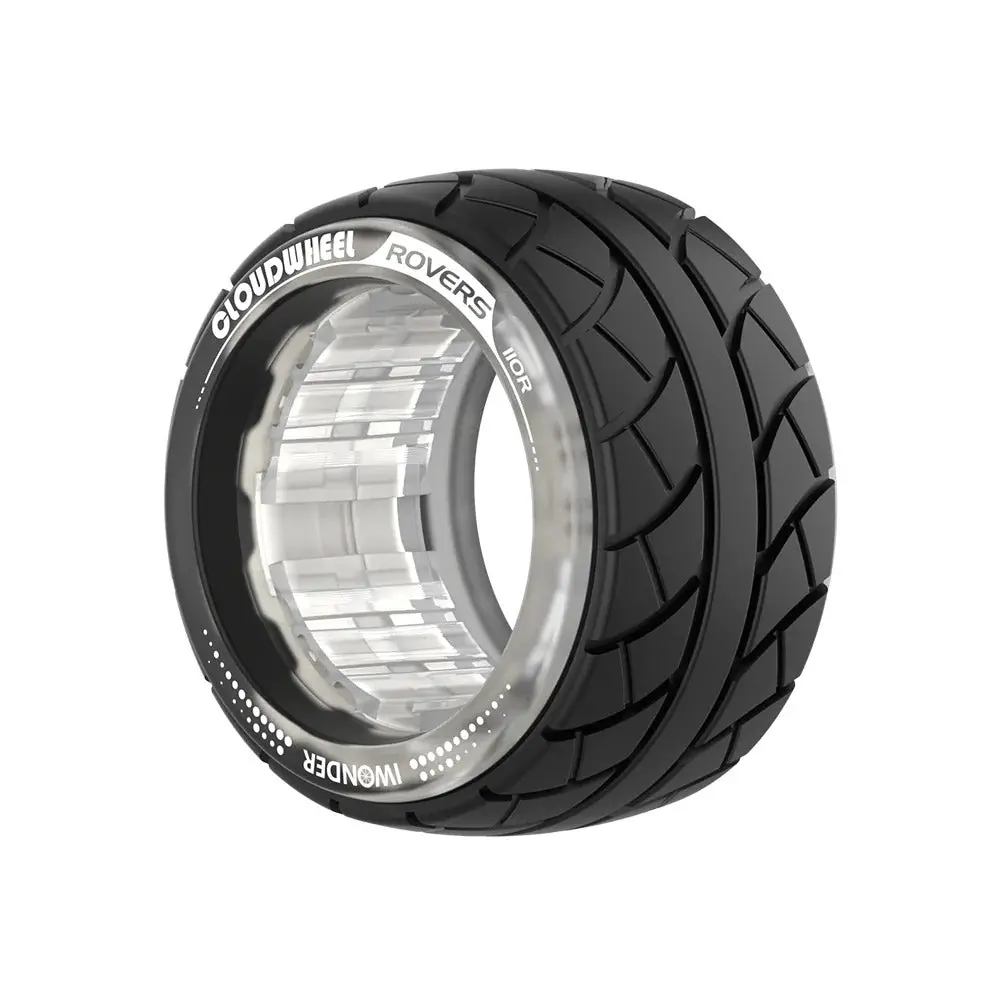

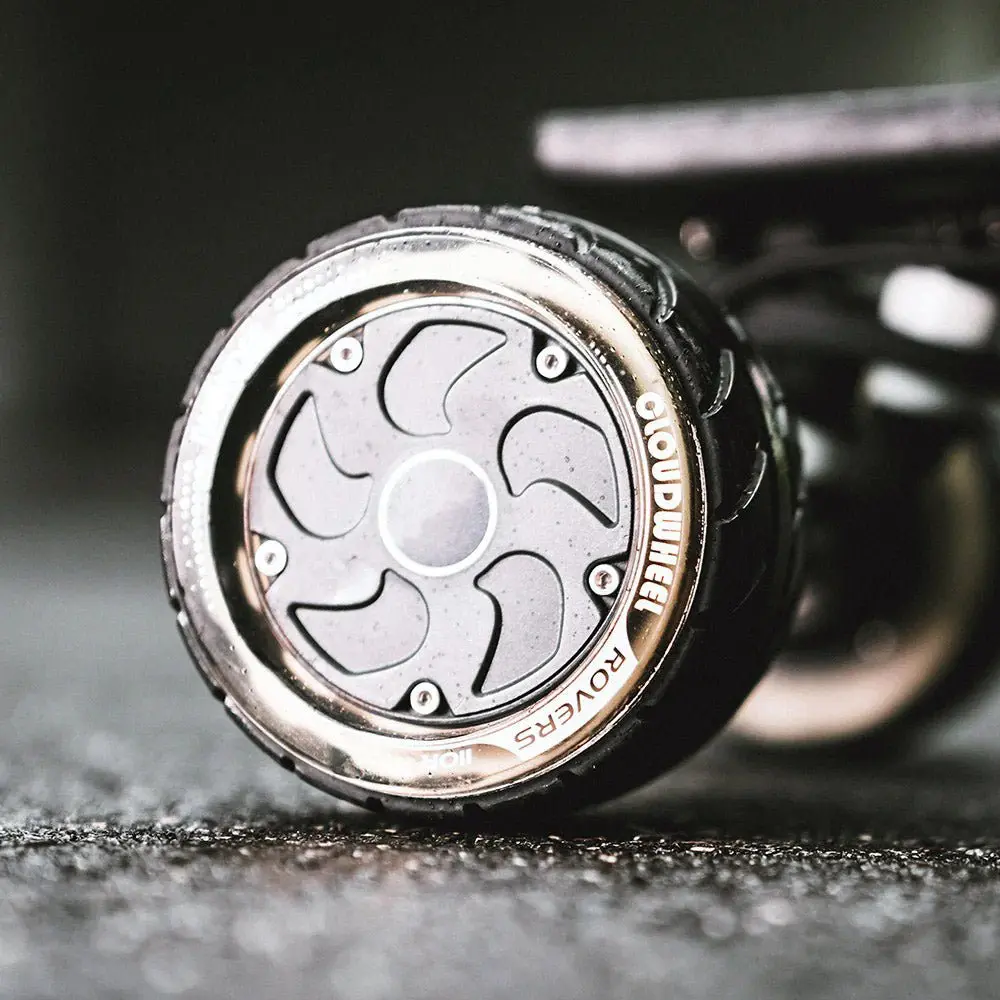

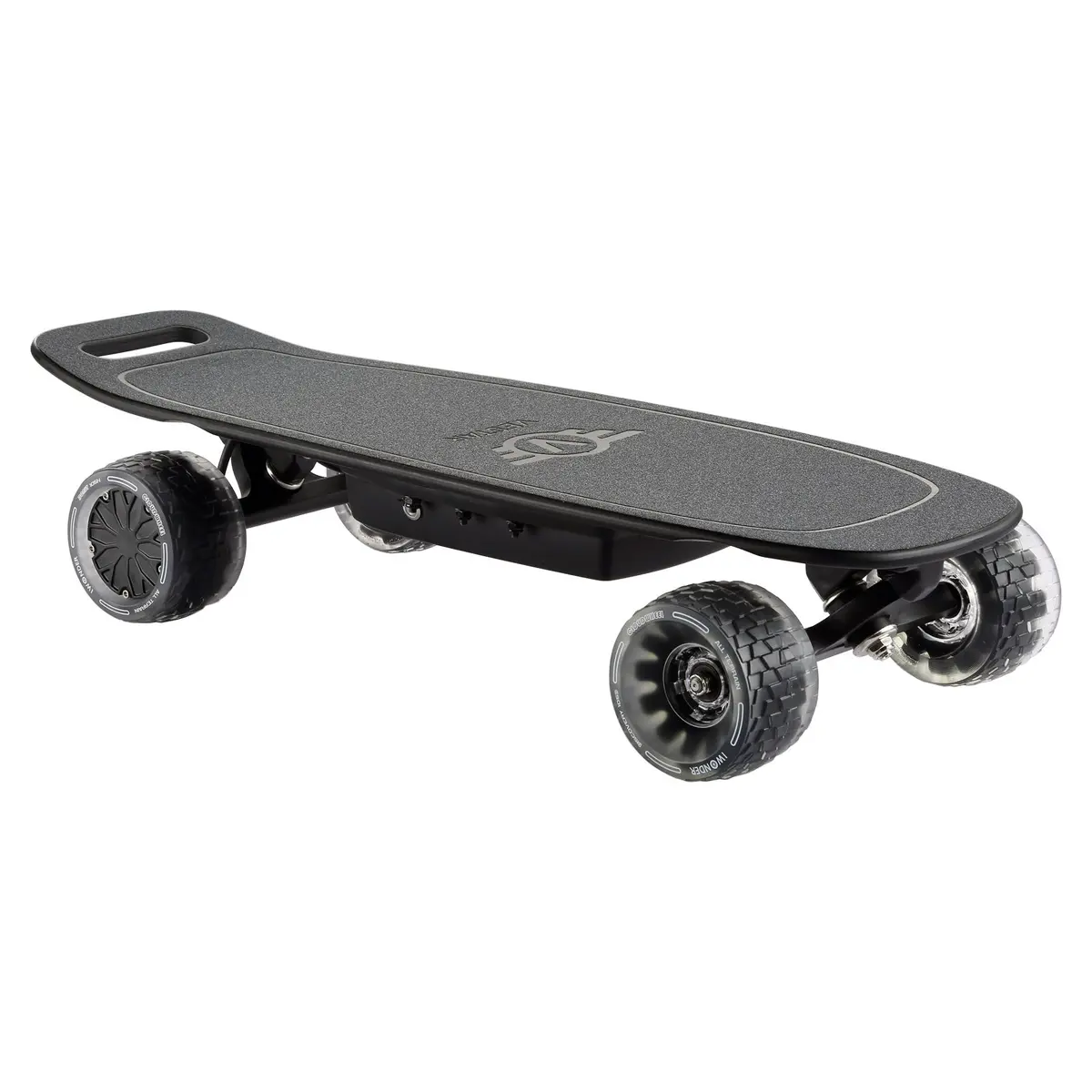

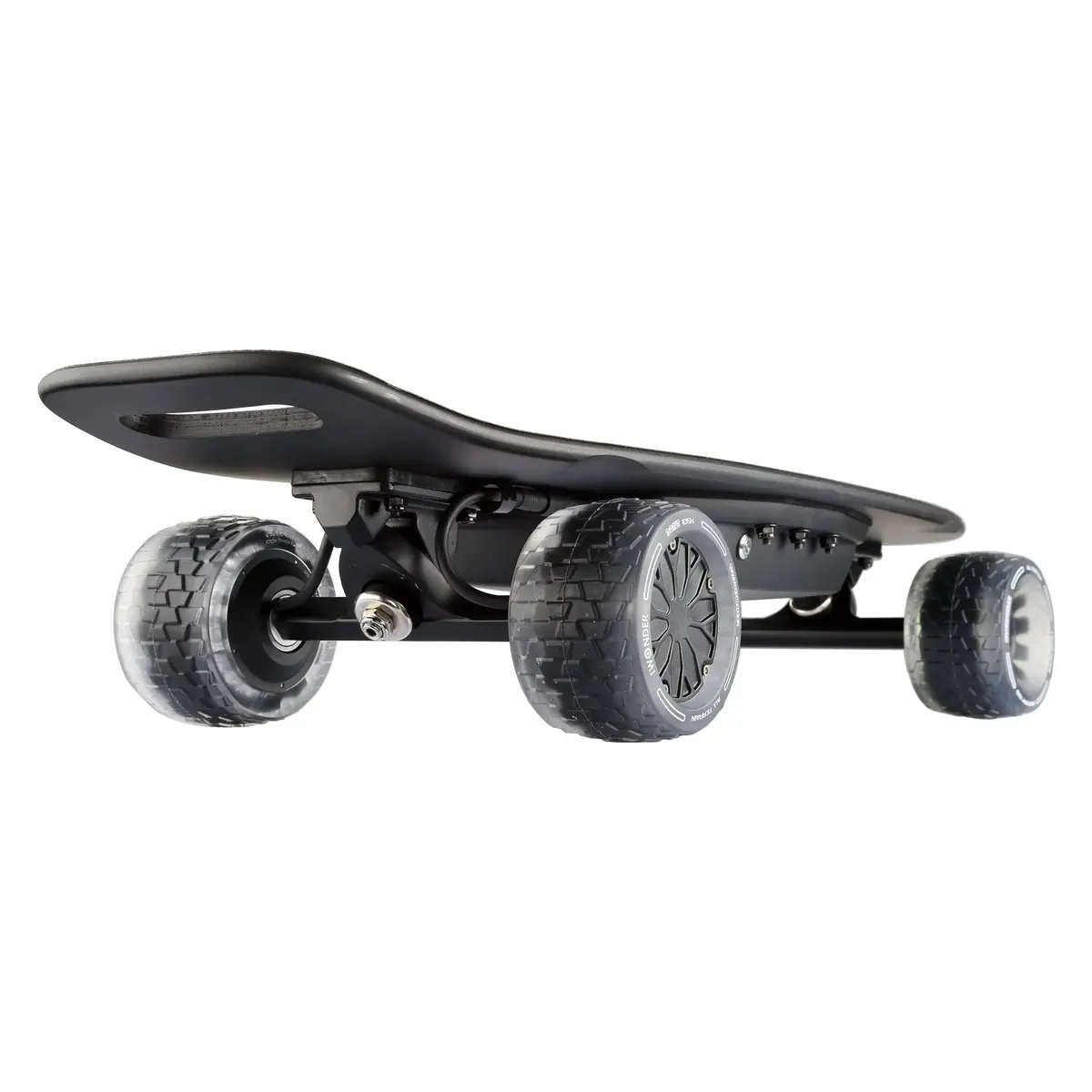

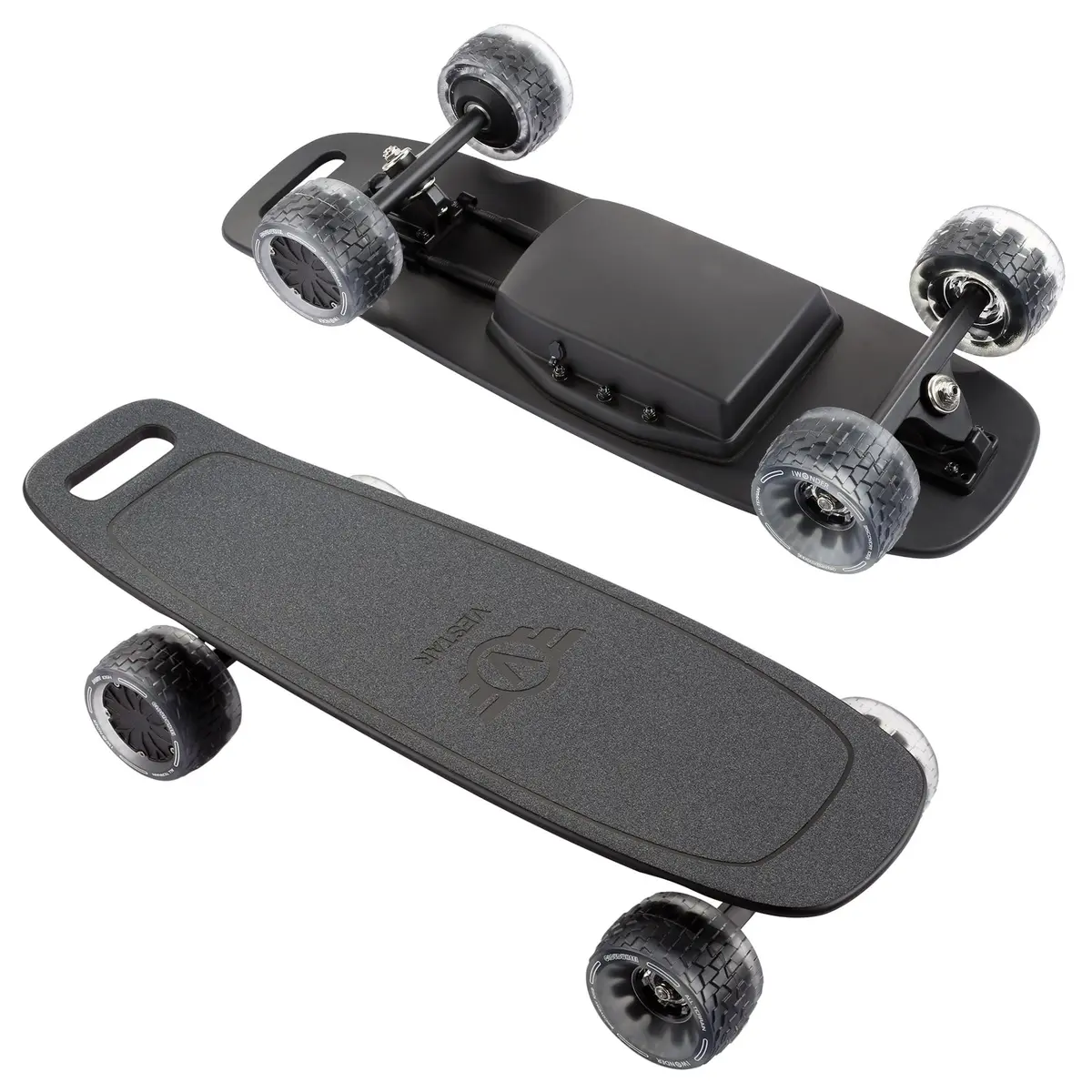

Flexible wheel matching

---

Vesta Mini2 has upgraded Hobbywing’s motor, and now he has more flexible tire skin options.

High-rate Power Battery

---

The vestar mini2 board uses a powerful, high-quality, high-discharge rate power battery.

Product model	Standard	Enhanced	Aviation
Battery	180 Wh	252 Wh	90 Wh
Battery cell	DMEGC 26E	SANYO GA	SAMSUNG 25R
Cell test Report	Cell spec	Cell spec	Cell spec
Nominal dischage capacity	2600mAh	3500mAh	2500mAh
Nominal voltage	3.6V	3.6V	3.6V
Ac impedance 1kHz	≤14mΩ	≤14mΩ	≤13.2mΩ
Voltage range	4.2-2.5V	4.2-2.5V	4.2-2.5V
Weight	≤48g	≤48g	≤48g
Cell surface Cut-off Temperature	0to+50℃	0to+50℃	0to+50℃
Standard charge current	1.25A	1.475A	1.25A
Max continuous current	4.0A	4.0A	4.0A
Standard current	0.5A	0.5A	0.5A
Max continuous current	12.0A	10.0A	25.0A

Gravity Casting Truck

---

Vestar Mini2 board truck part all adopt Gravity Casting + T6 heat treatment process, which is better than die-cast truck.Gravity Casting vs. Die Casting for Aluminum Skateboard Truck Parts

Comparison	Gravity Casting	Die Casting
Cast Alloy	A356-T6 aluminum alloy	A380 aluminum alloy
Process	Liquid aluminum alloys flows into to mold under gravity	Liquid aluminum alloy is pressed into mold under high pressure.
Heat Treatment	Can do T6 heat treatment to improve the strength	Can not do heat treatment.
Strength	Stronger with higher Hardness	Weaker with lower hardness
Cost	Complex process and high cost	Good unit price but high tooling cost
Bearing Weight	Can bear 150kgs or more.	Can bear 95kgs at most.

New Power Through shaft structure Hub Drive System

---

The Vestar Mini cruise 2 series upgrade New Power Through shaft structure Hub Drive motor,
and the sufficient power output of 600W*2 allows the skateboard to continue to accelerate to more than 30MPH，
You can experience the fun of sliding comfortably.
Excellent heat dissipation control allows the motor to work for a long time, ensuring that you have no worries about long-distance riding.

Hub Motor Compare

---

Mini 2 cruise series, upgraded with Hobbywing’s high-power permanent magnet through-shaft structure motor.
Now it has higher performance and better tire fit options.

ESC Technology

---

Vestar Mini2 series uses an excellent improved Hobbywing ESC(The overall hardware upgrade enables it to work at much higher current)
which allows you to get larger torque and faster acceleration,
Hobbywings ESC is famous in acceleration and braking system. You can have a wonderful and smooth riding!

Waterproof

---

Each Mini2 has been treated with Basic waterproof treatment both inside and outside.
Normally it could resist the splash of daily life.
Note: However. We should avoid water intake at power button and charging port.

---

Vestar Board has improved based on customer feedback.
We’re always developing our product and are rapidly becoming one of the best brands in the E-board Industry!

Wath’s in Box?
