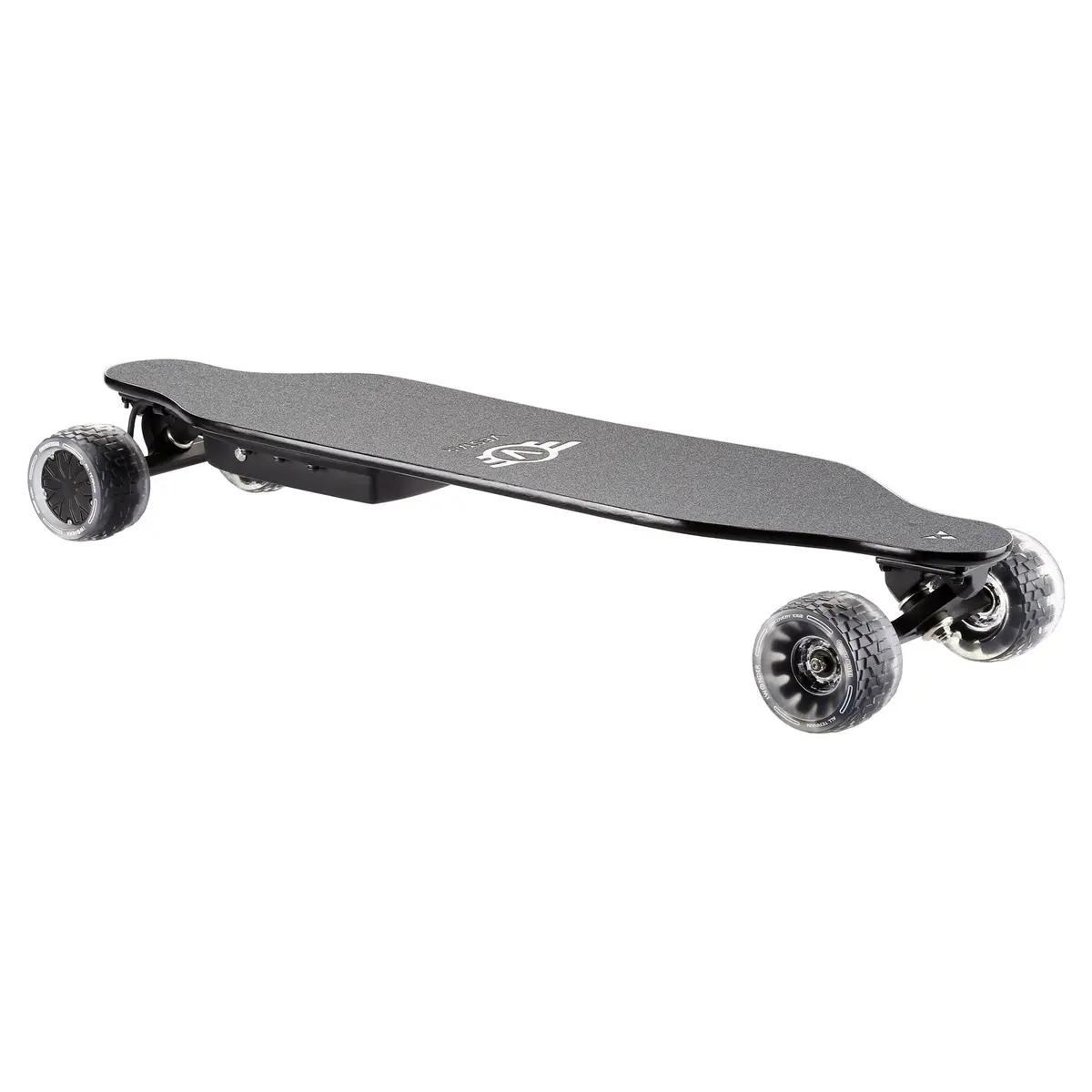

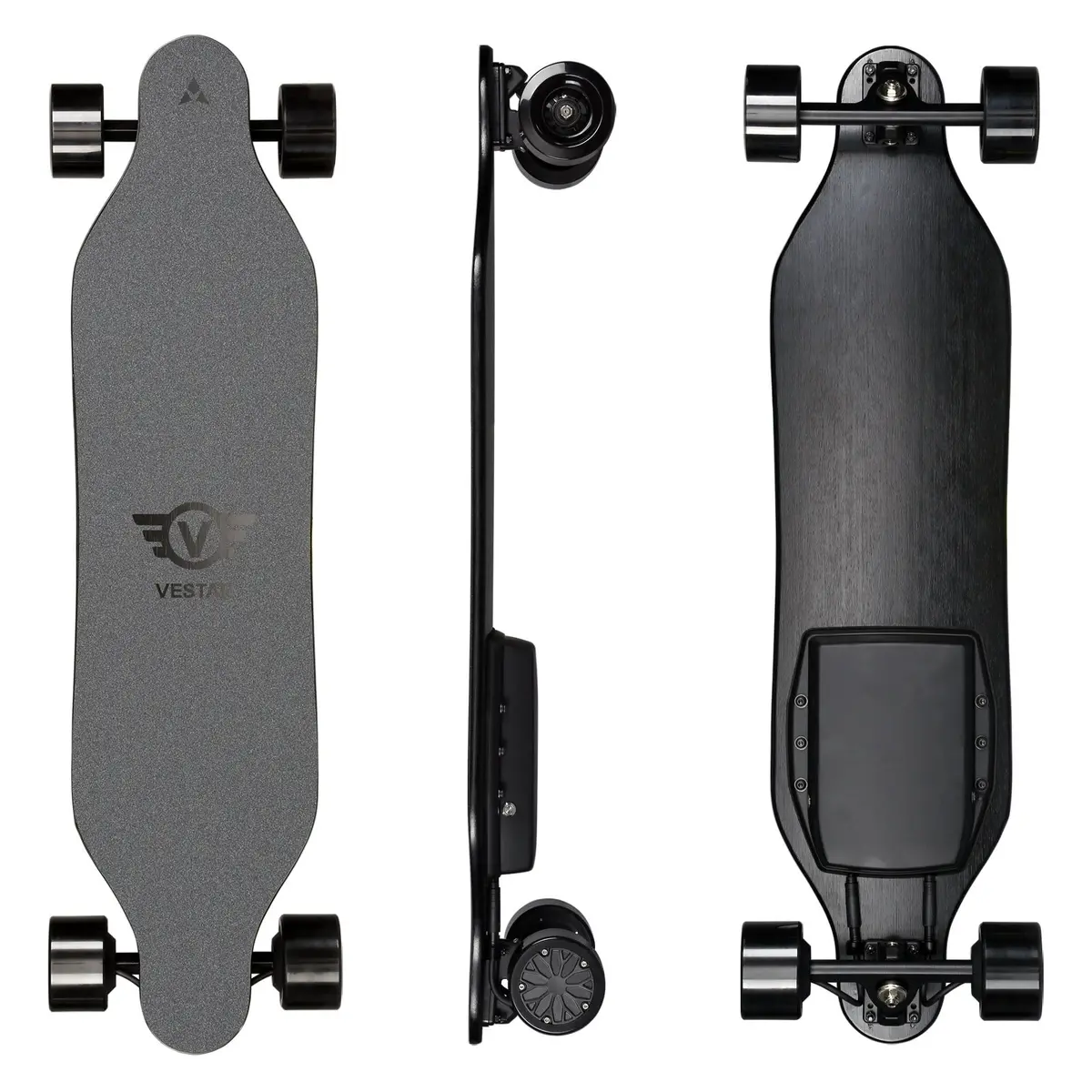

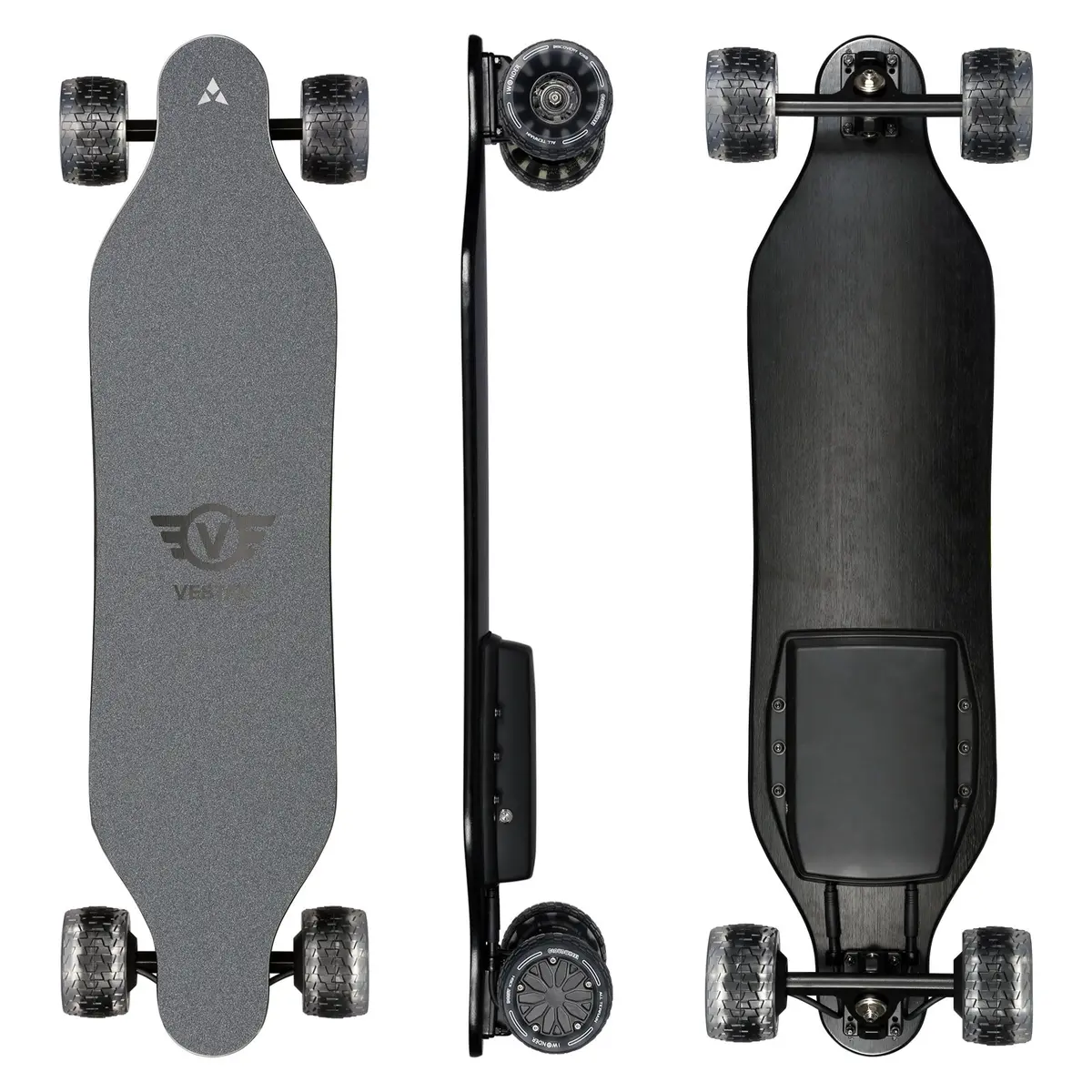

Vestar V3 Bamboo Cruise Electric Skateboard Deck

Description

Specification

---

Product Type		Standard	Enhanced
SPEC	Max speed	27 Miles/H	27 Miles/H
	Max range	18 Miles	23 Miles
	Max load	120 kg / 260 lbs	120 kg / 260 lbs
	Hills	UP TO 30%	UP TO 30%
MOTOR	Type	Hub Drive	Hub Drive
	Power	5230 600W*2	5230 600W*2
BATTERY	Wh	280.8Wh	324Wh
WHEELS	Material	Highly Elastic PU	Highly Elastic PU
	Size	90 mm	90 mm
	Hardness	80A	80A
DECK	Material	Bamboo + Fiber Glass	Bamboo + Fiber Glass
	Length	38 inches / 97 cm	38 inches / 97 cm
CASE	CASE Material	Aluminum	Aluminum
TRUCKS	Trucks	8 inch Aluminum  T6	8 inch Aluminum  T6
	Busing	97AA	97AA
	Bearing	One-Piece Precision Bearing	One-Piece Precision Bearing
OTHERS	USB port
IN BOX	Remote	R4 OLED Remote	R4 OLED Remote
	Manual	1	1
	Quick Charger	3A	3A
	AC Power Cable	1	1
	Type-C Cable	1	1
	Skate Tool	1	1
	Spline End Wrenches	1	1
COMPLATE	Net weight	17.4lb/7.9kg	17.4lb/7.9kg
	Gross weight
	Package Size

Inspiration

---

This board is Superman in tights！It uses a one-piece all-metal shell with all-bamboo + fiberglass flex deck. It has both riding comfort and sturdiness.
The 10S3P high-rate battery and the professionally modified ESC by Hobbywing Technology have injected a cardiotonic agent into the two 5230 high-power Hub motors.
Super acceleration performance and smooth brakes make you confident in riding. After combining strong power and battery life, the total weight is only 17.4lb/7.9kg.
If you need a lightweight electric skateboard in your daily commute, then you will need it!

High-rate Power Battery

---

The V3 bamboo series board uses a powerful, high-quality, high-discharge rate power battery.

Model	Standard	Enhanced
Battery	280.8 Wh	324 Wh
Battery cell	DMEGC 26E	SAMSUNG 30Q
Cell test Report	Cell Specification	Cell Specification
Nominal dischage capacity	2600mAh	3000mAh
Nominal voltage	3.6V	3.6V
Ac impedance 1kHz	≤14mΩ	≤13mΩ
Voltage range	4.2-2.5V	4.2-2.5V
Weight	≤48g	≤48g
Cell surface Cut-off Temperature	0to+50℃	0to+50℃
Standard charge current	1.25A	1.5A
Max continuous current	4.0A	4.0A
Standard current	0.5A	0.5A
Max continuous current	12.0A	15.0A

Gravity Casting Truck

---

V3 bamboo series board truck part all adopt Gravity Casting + T6 heat treatment process, which is better than die-cast truck.

Gravity Casting vs. Die Casting for Aluminum Skateboard Truck Parts

Comparison	Gravity Casting	Die Casting
Cast Alloy	A356-T6 aluminum alloy	A380 aluminum alloy
Process	Liquid aluminum alloys flows into to mold under gravity	Liquid aluminum alloy is pressed into mold under high pressure.
Heat Treatment	Can do T6 heat treatment to improve the strength	Can not do heat treatment.
Strength	Stronger with higher Hardness	Weaker with lower hardness
Cost	Complex process and high cost	Good unit price but high tooling cost
Bearing Weight	Can bear 150kgs or more.	Can bear 95kgs at most.

All Bamboo Flex Deck

---

V3 bamboo series board deck made of all bamboo + fiberglass composite.
Takes advantage of the flexibility of bamboo and the characteristics of high rebound curvature,by fiberglass to increase the strength of the deck, so that the deck can safely carry riders under 120 kg for safe riding.
Flexibility of natural bamboo filters the vibration during your riding process, providing you with a more comfortable riding experience.

New Power Through shaft structure Hub Drive System

---

The Vestar Mini cruise 2 series upgrade New Power Through shaft structure Hub Drive motor,
and the sufficient power output of 600W*2 allows the skateboard to continue to accelerate to more than 30MPH，
You can experience the fun of sliding comfortably.
Excellent heat dissipation control allows the motor to work for a long time, ensuring that you have no worries about long-distance riding.

Hub Motor Compare

---

Mini 2 cruise series, upgraded with Hobbywing’s high-power permanent magnet through-shaft structure motor.
Now it has higher performance and better tire fit options.

ESC Technology

---

V3 bamboo series uses an excellent improved Hobbywing ESC(The overall hardware upgrade enables it to work at much higher current)
which allows you to get larger torque and faster acceleration,
Hobbywings ESC is famous in acceleration and braking system. You can have a wonderful and smooth riding!

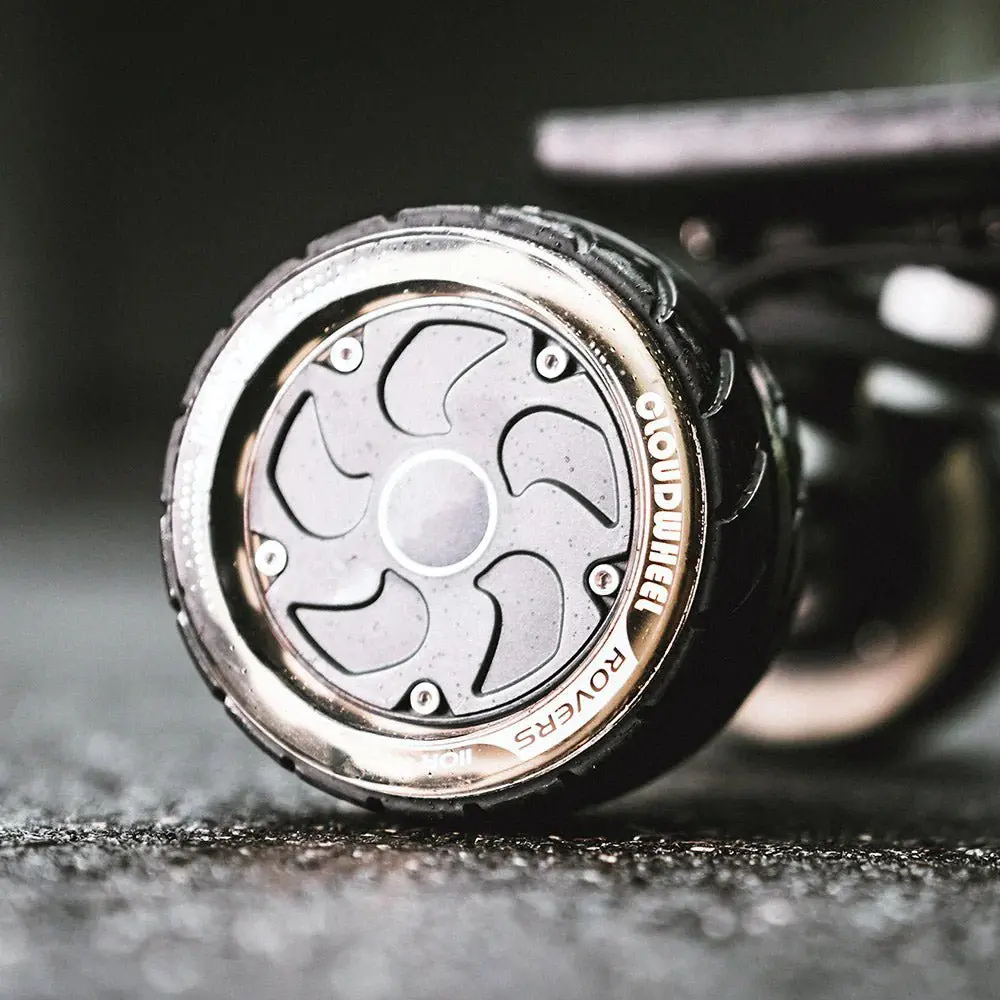

Flexible wheel matching

---

V3 bamboo series uses adjustable motor mount, Our board can be easily fit to different diameters and different types wheels;
Wheel diameter adaptation: 83mm-150mm;

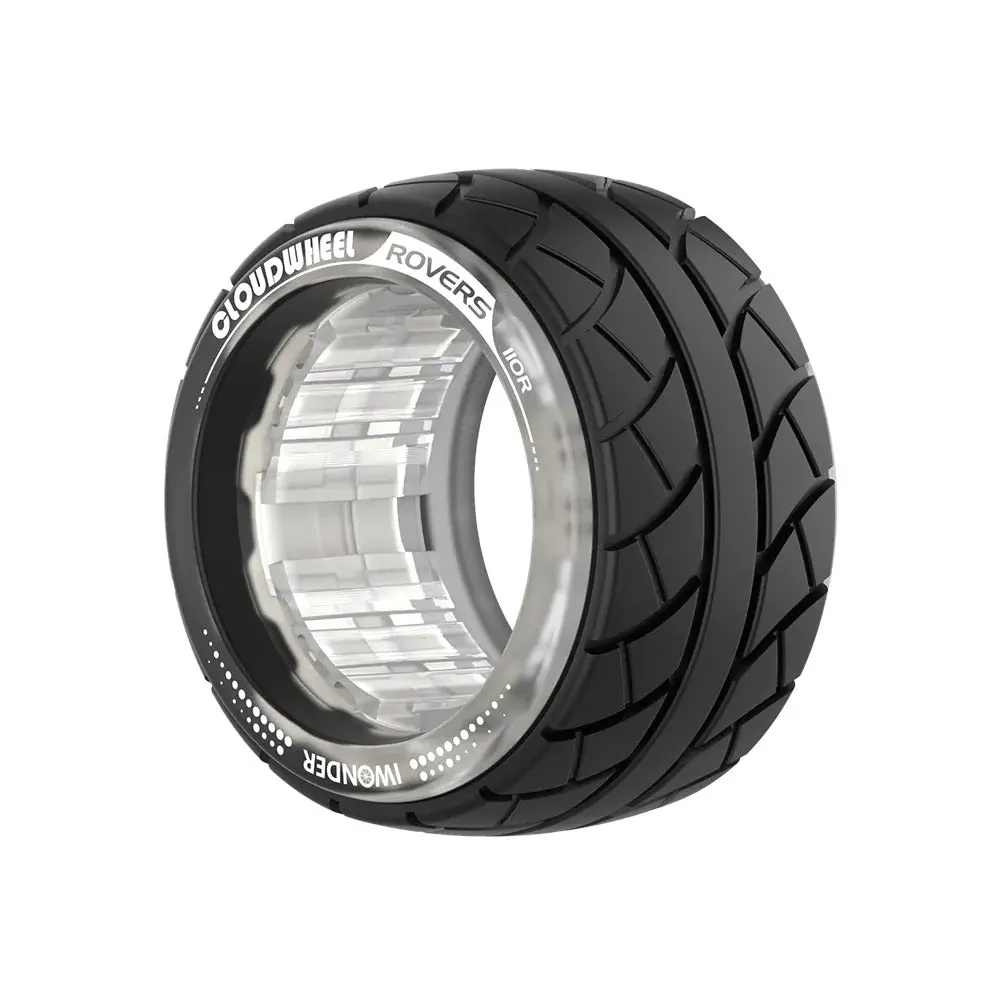

Wheel types fit: Normal PU wheels, Cloud wheels, ABEC11 wheels,MBS AT wheels,Rubber wheels, Air tire, Explosion-proof AT wheels Wait.

Waterproof

---

Each V3 has been treated with Basic waterproof treatment both inside and outside.
Normally it could resist the splash of daily life.
Note: However. We should avoid water intake at power button and charging port.

---

Vestar Board has improved based on customer feedback.
We’re always developing our product and are rapidly becoming one of the best brands in the E-board Industry!

Wath’s in Box?
