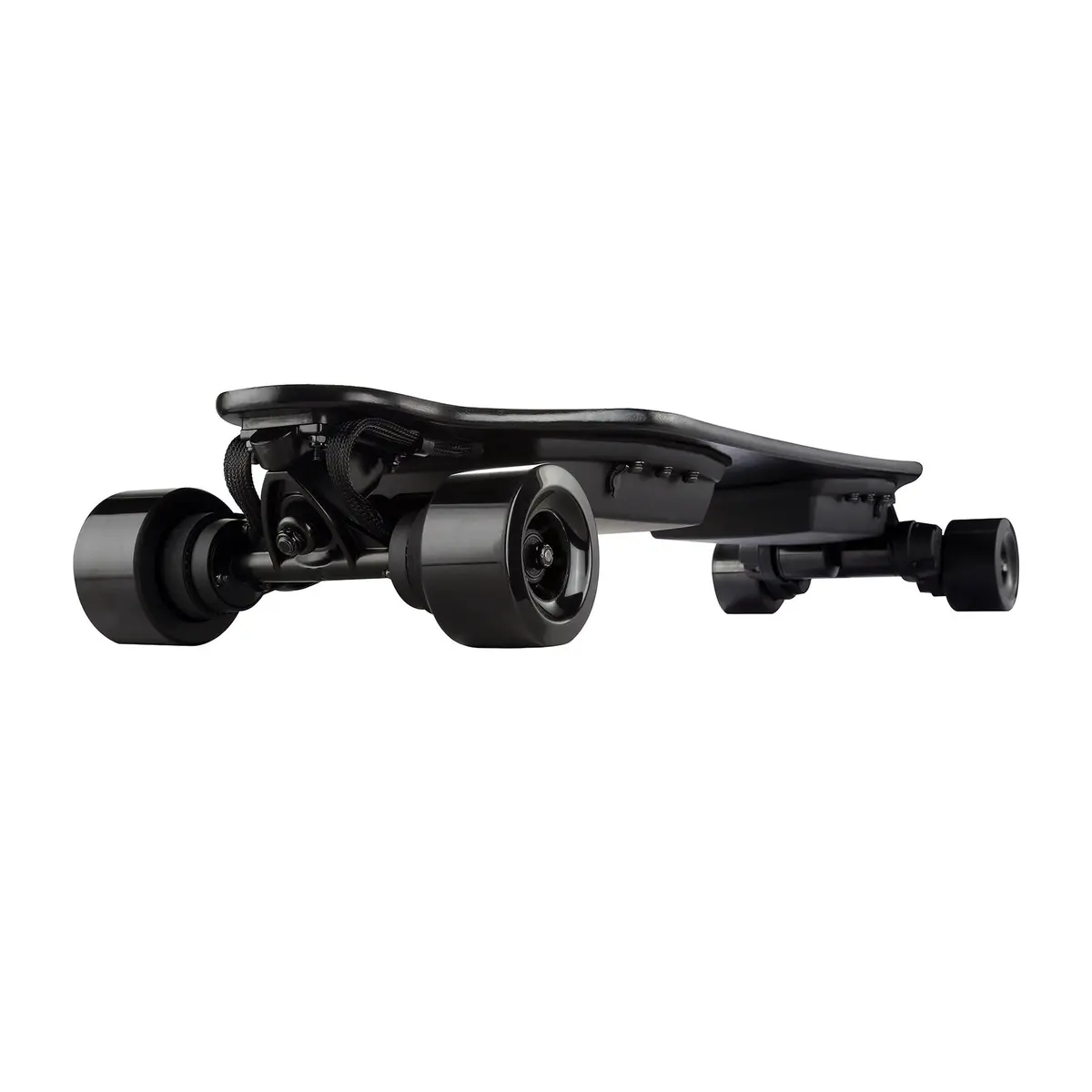

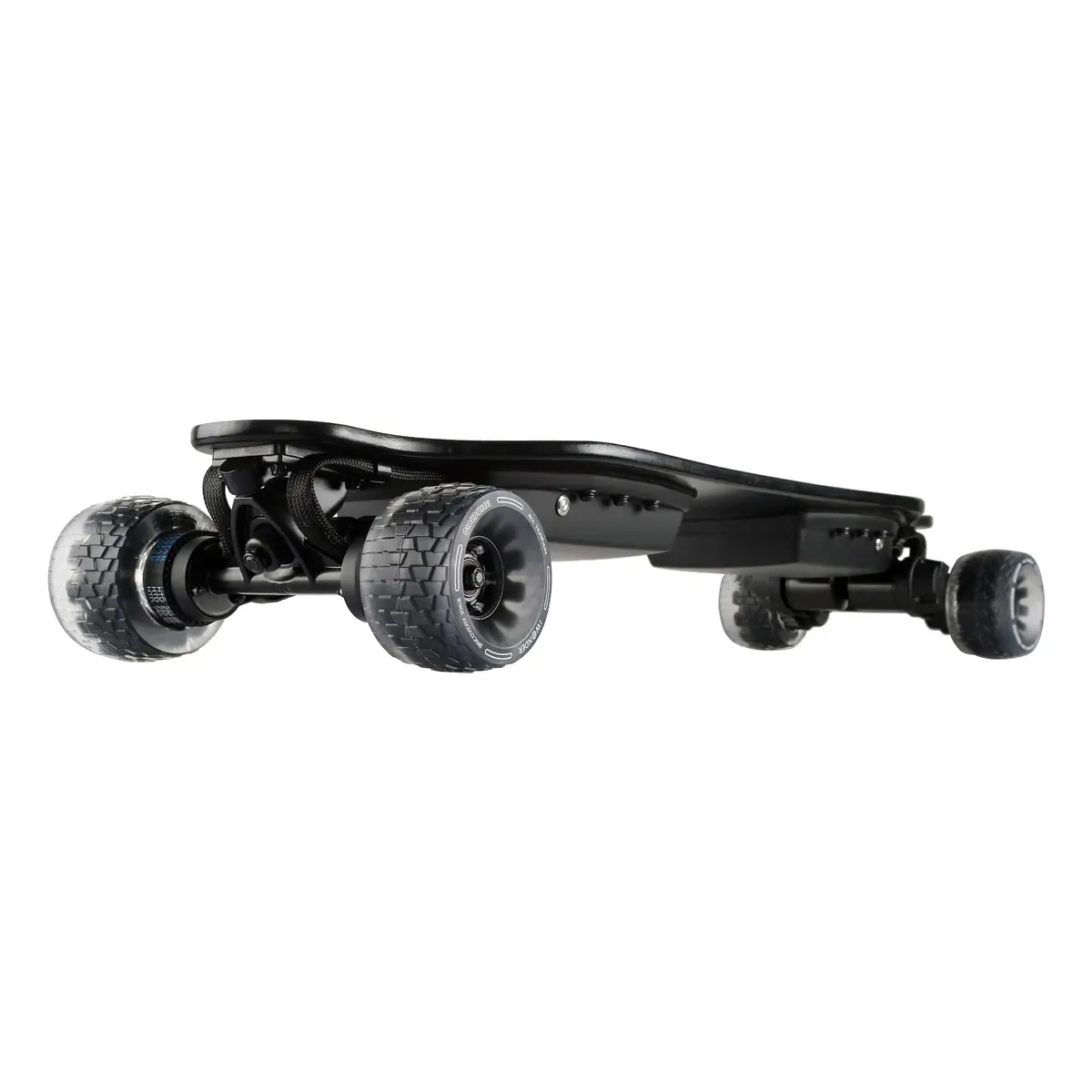

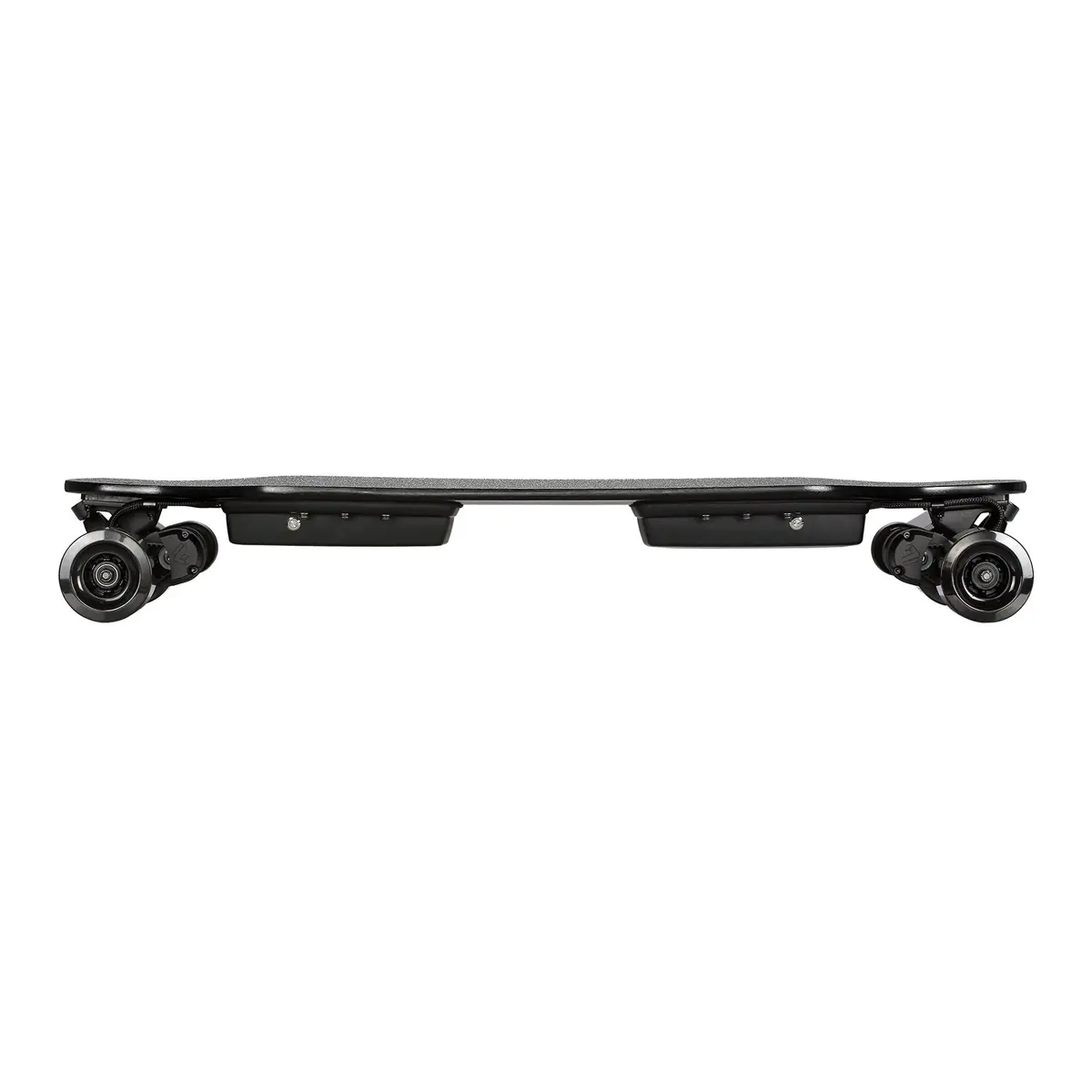

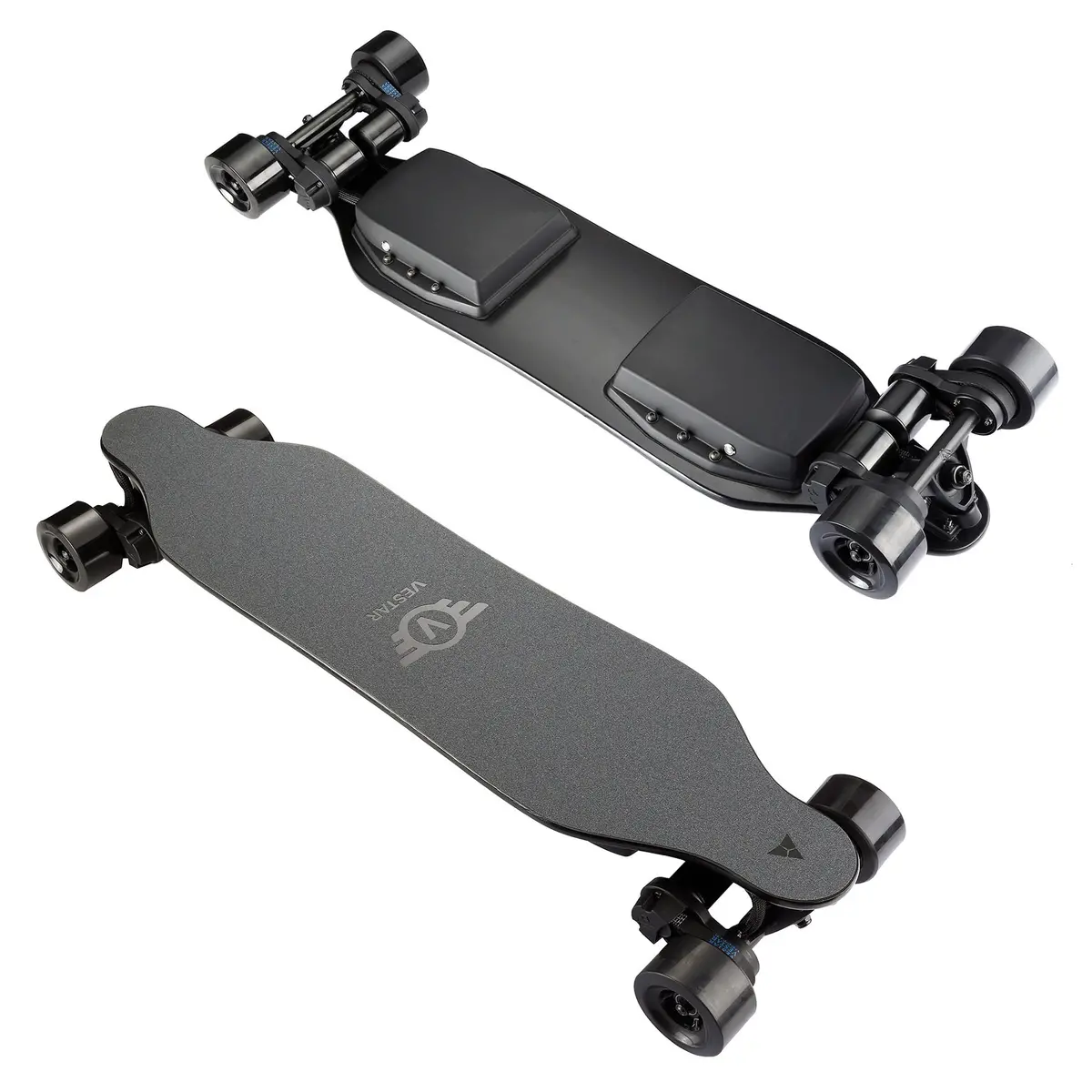

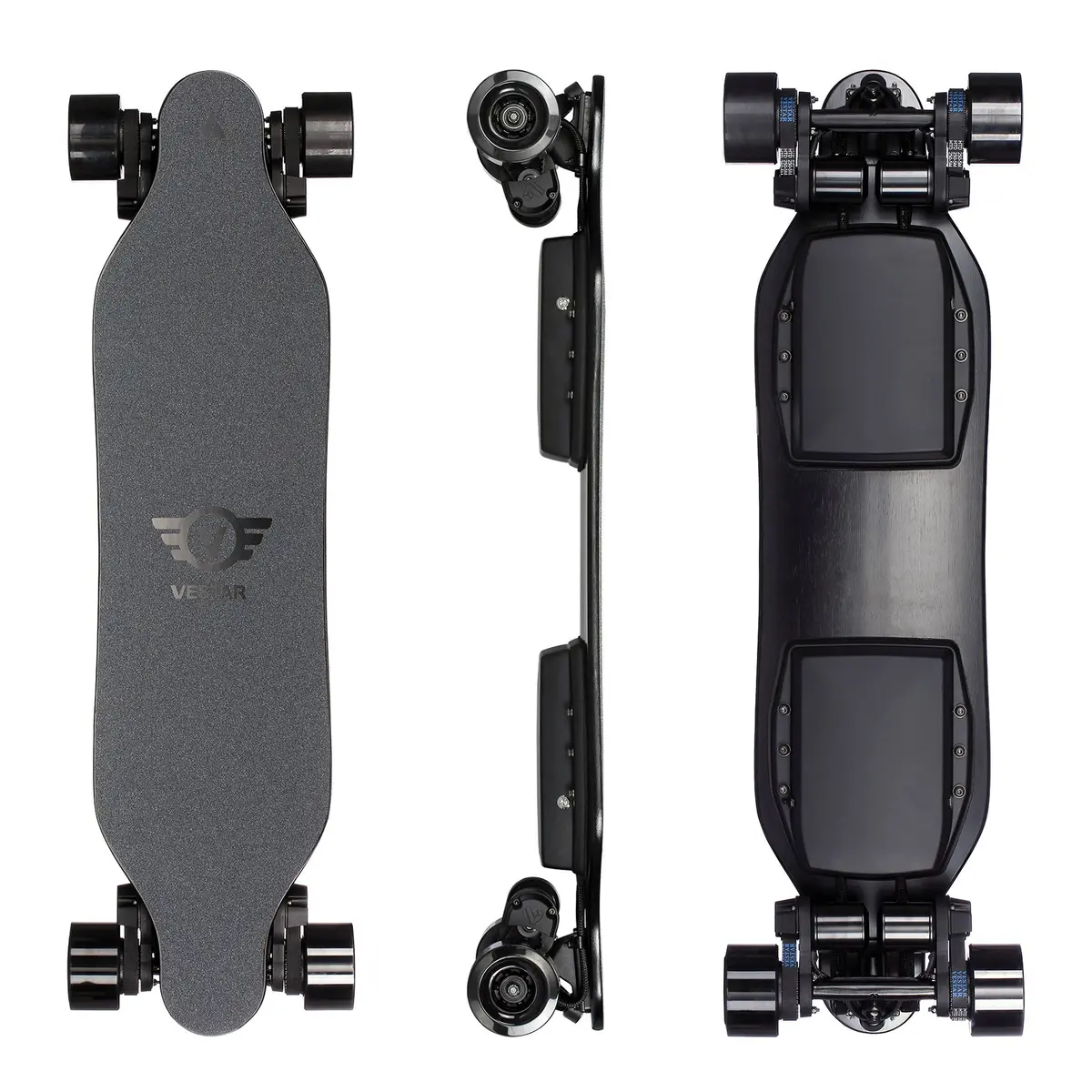

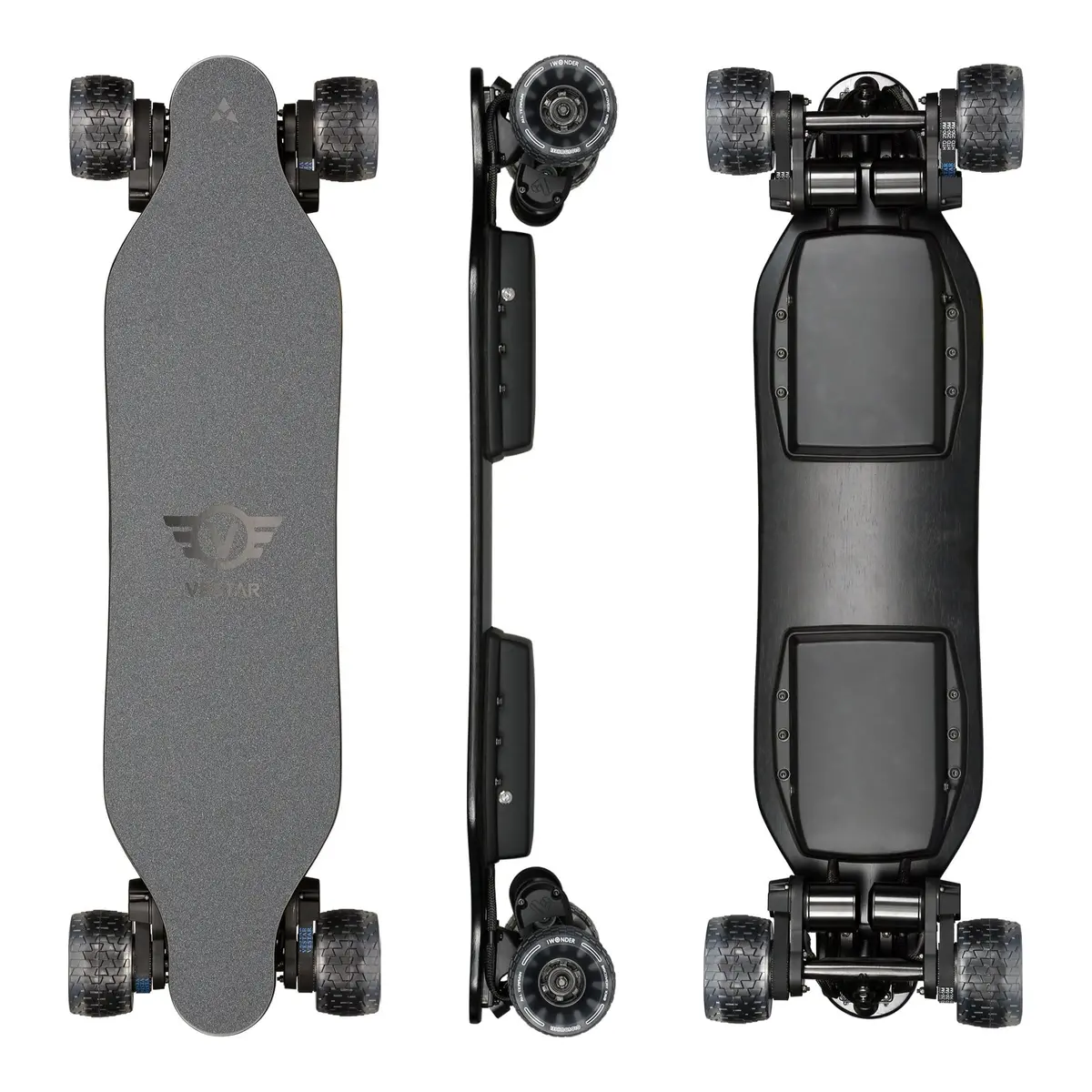

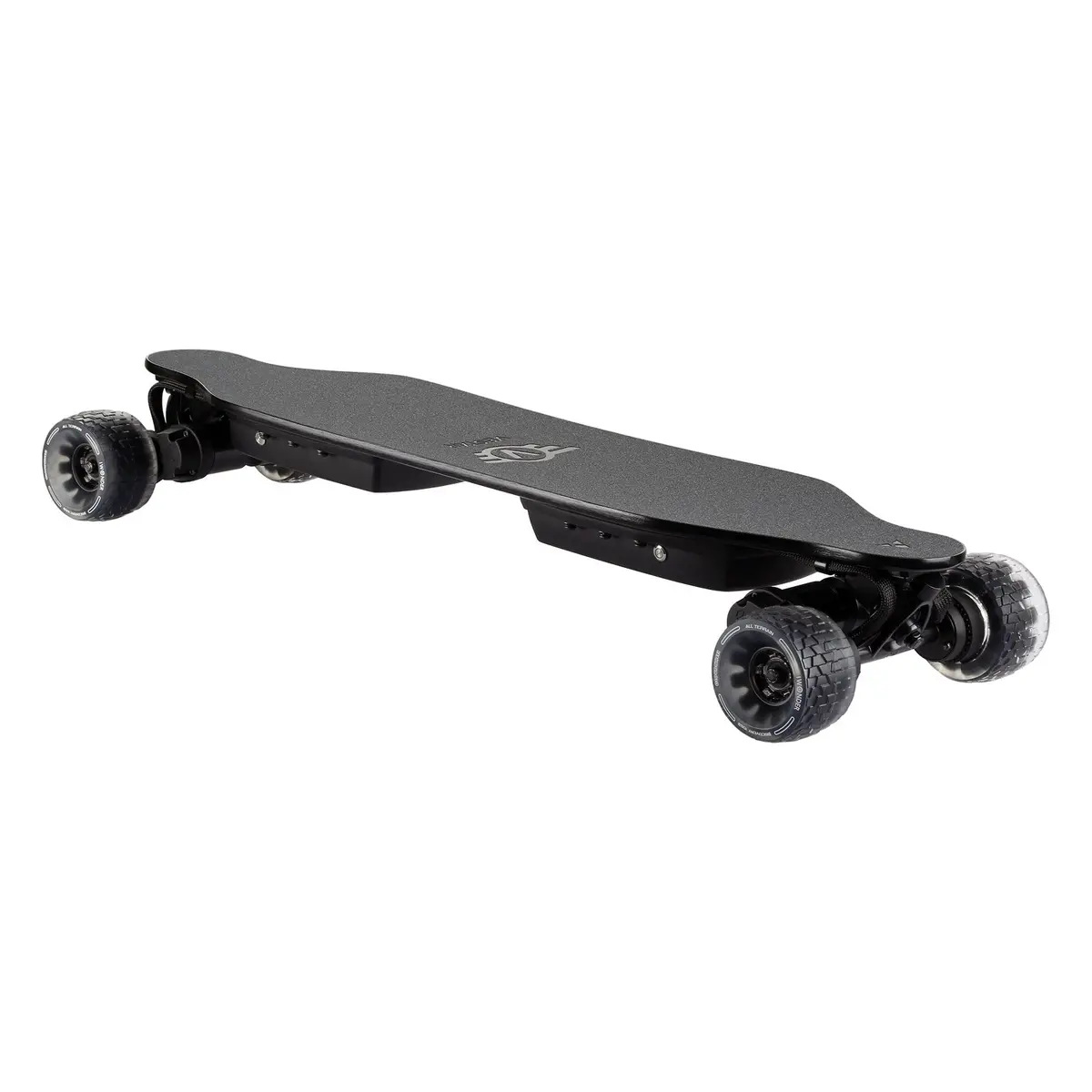

Vestar V3 Bamboo 4WD Electric Skateboard

Description

Specification

---

Product Model		Standard	Enhanced
SPEC	Max speed	35 Miles/H	35 Miles/H
	Max range	15-30 Miles	20-40 Miles
	Max load	120 kg / 260 lbs	120 kg / 260 lbs
	Hills	UP TO 40%	UP TO 40%
MOTOR	Type	Belt Drive	Belt Drive
	Power	5065 1500W*4	5065 1500W*4
BATTERY	Wh	270Wh*2	324Wh*2
WHEELS	Material	Highly Elastic PU	Highly Elastic PU
	Size	90 mm	90 mm
	Hardness	80A	80A
DECK	Material	Bamboo + Fiber Glass	Bamboo + Fiber Glass
	Length	38 inches / 97 cm	38 inches / 97 cm
CASE	CASE Material	Aluminum	Aluminum
TRUCKS	Trucks	8 inch Aluminum  T6	8 inch Aluminum  T6
	Busing	97AA	97AA
	Bearing	One-Piece Precision	One-Piece Precision
OTHERS	USB port
IN BOX	Remote	R4 OLED Remote	R4 OLED Remote
	Manual	1	1
	Quick Charger	3A	3A
	AC Power Cable	1	1
	Type-C Cable	1	1
	Skate Tool	1	1
	Spline End Wrenches	1	1
COMPLATE	Net weight	11.7kg/25.5lb	11.7kg/25.5lb
	Gross weight
	Package Size

Inspiration

---

This board is crazy Paul’s idea.
2 batteries,2 BMS, 2 ESC controllers, and of course, 1500W*45065 belt motors! At only 25.8 lbs/11.7 kg, it is the lightest of all 4WD Boards.
This is like BUFFED to V3 bamboo, and everything has doubled its performance.
Can choose 2 WD mode and 4 WD mode:
when you use 4 WD mode, compared to V3 bamboo,you have 1500W*4 power output, 0-20 miles 3 seconds acceleration ability, 40% climbing ability , And the same maximum endurance of 20 miles;
when you choose the 2 WD mode, the two sets of power work in turn, giving you an incredible 40-mile range.

High-rate Power Battery

The V3 bamboo series board uses a powerful, high-quality, high-discharge rate power battery.

Product model	Standard	Enhanced
Battery	280.8Wh*2	324WH*2
Battery cell	DMEGC 26E	SAMSUNG 30Q
Cell test Report	Cell Specification	Cell Specification
Nominal dischage capacity	2600mAh	3000mAh
Nominal voltage	3.6V	3.6V
Ac impedance 1kHz	≤14mΩ	≤13mΩ
Voltage range	4.2-2.5V	4.2-2.5V
Weight	≤48g	≤48g
Cell surface Cut-off Temperature	0to+50℃	0to+50℃
Standard charge current	1.25A	1.5A
Max continuous current	4.0A	4.0A
Standard current	0.5A	0.5A
Max continuous current	12.0A	15.0A

Gravity Casting Truck

V3 bamboo series board truck part all adopt Gravity Casting + T6 heat treatment process, which is better than die-cast truck.

Gravity Casting vs. Die Casting for Aluminum Skateboard Truck Parts

Comparison	Gravity Casting	Die Casting
Cast Alloy	A356-T6 aluminum alloy	A380 aluminum alloy
Process	Liquid aluminum alloys flows into to mold under gravity	Liquid aluminum alloy is pressed into mold under high pressure.
Heat Treatment	Can do T6 heat treatment to improve the strength	Can not do heat treatment.
Strength	Stronger with higher Hardness	Weaker with lower hardness
Cost	Complex process and high cost	Good unit price but high tooling cost
Bearing Weight	Can bear 150kgs or more.	Can bear 95kgs at most.

Powerful Belt Drive System

V3 bamboo series use Dual 5065 1500W Belt mostpowerful motors!
The V3 series skateboard is equipped with 5065 dual-drive motor and the sufficient power output of 1500W*4 allows the skateboard to continue to accelerate to more than 35MPH.

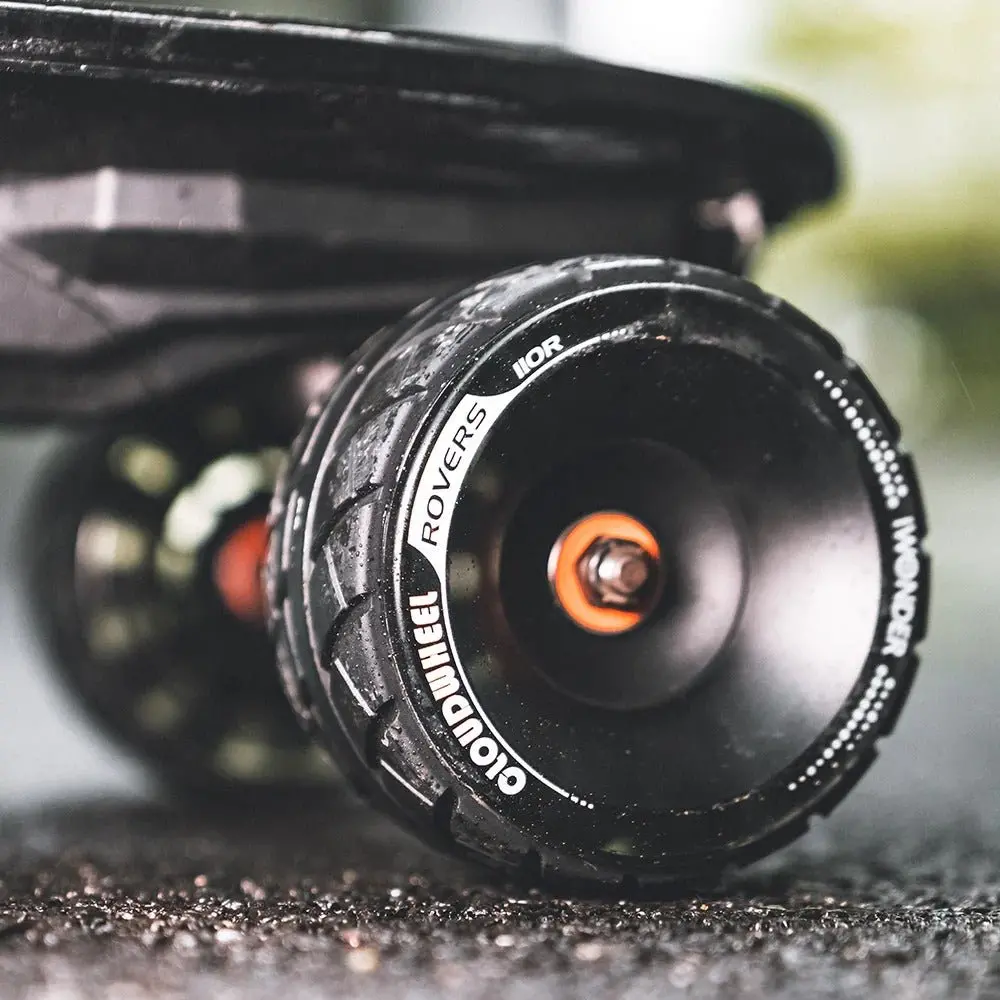

Flexible wheel matching

V3 bamboo series uses adjustable motor mount, Can be easily fit to different diameters and different types wheels;
Wheel diameter adaptation: 83mm-150mm;

All Bamboo Flex Deck

V3 bamboo series board deck made of all bamboo + fiberglass composite.
Takes advantage of the flexibility of bamboo and the characteristics of high rebound curvature,by fiberglass to increase the strength of the deck, so that the deck can safely carry riders under 120 kg for safe riding.

ESC Technology

V3 bamboo series uses an excellent improved Hobbywing ESC(The overall hardware upgrade enables it to work at much higher current)
which allows you to get larger torque and faster acceleration,
Hobbywings ESC is famous in acceleration and braking system.

Waterproof

Each V3 has been treated with Basic waterproof treatment both inside and outside.
Normally it could resist the splash of daily life.
Note: However. We should avoid water intake at power button and charging port. Vestar Board has improved based on customer feedback.
We’re always developing our product and are rapidly becoming one of the best brands in the E-board Industry!

Wath’s in Box?

---

User Manual

---
